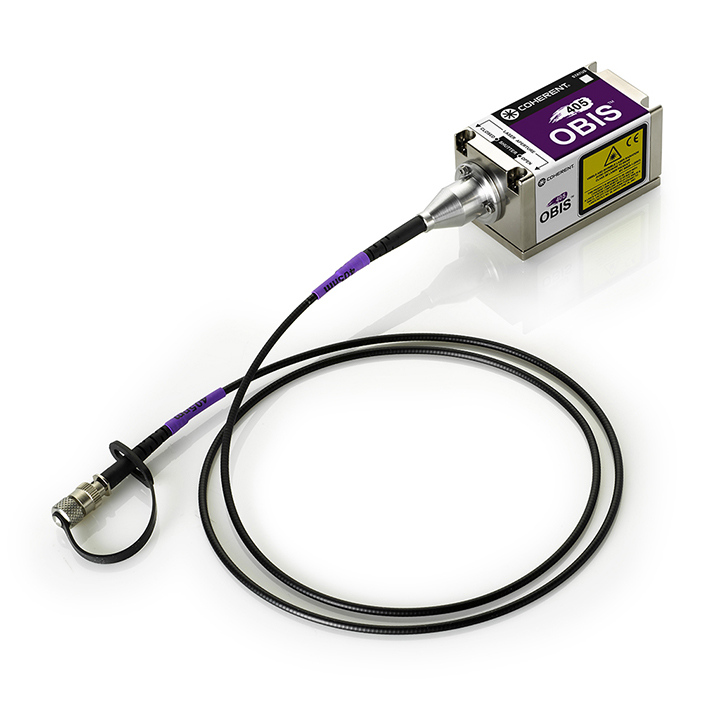

OBIS LX 405 nm 50 mW Laser, Fiber Pigtail, UFC, Galaxy

OBIS LX 405 nm 50 mW Laser, Fiber Pigtail, UFC, Galaxy

SKU 1236438
UOM Each

High Performance Laser. 405 nm wavelength with 50 mW of output power, fiber delivered with FC/UFC Galaxy connector.

Price $6,490.00 USD

Details

OBIS Lasers offer superior performance and reliability.

OBIS LX Lasers are built with Direct Diode technology.

Exceptional beam quality (M² ≤ 1.1) and low noise (RMS ≤ 0.2%) provides your application with high Signal-to-Noise ratio and contrast.

Designed for the most demanding Life Science, Medical and Semiconductor Markets.

Operate in Continuous Wave (CW) mode with output power control via host computer (USB or RS-485).

Modulation includes Analog up to 500 KHz; Digital Modulation up to 150 MHz.

Requires +12 Volts DC power. Order Power Supply separately or OBIS Remote separately.

Order OBIS Heatsink separately for easy mounting and cooling.

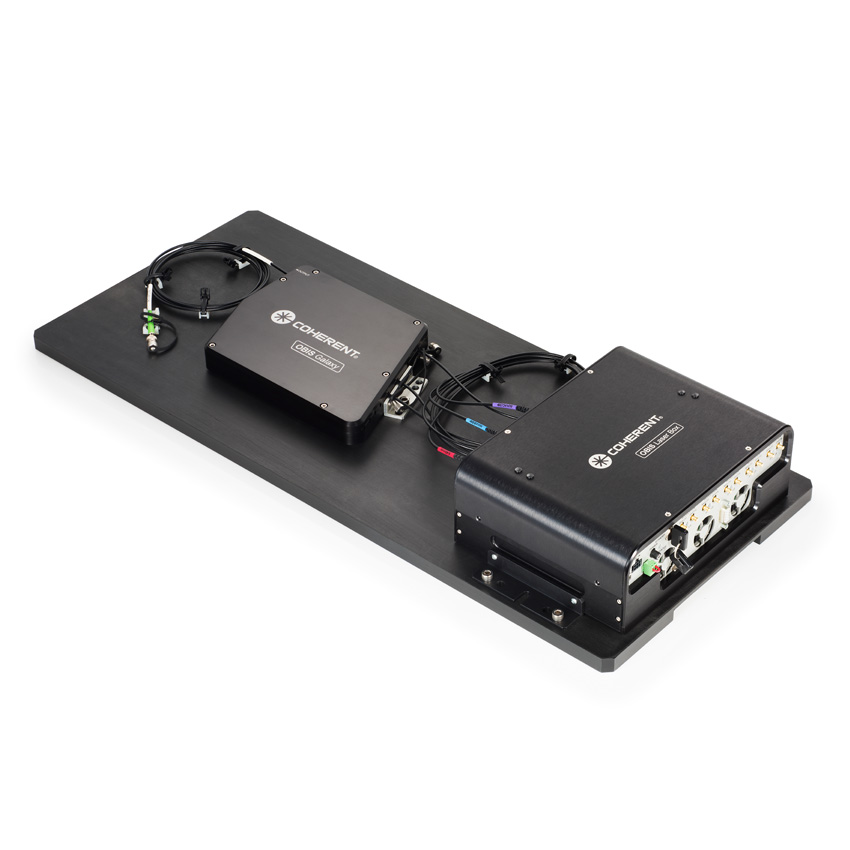

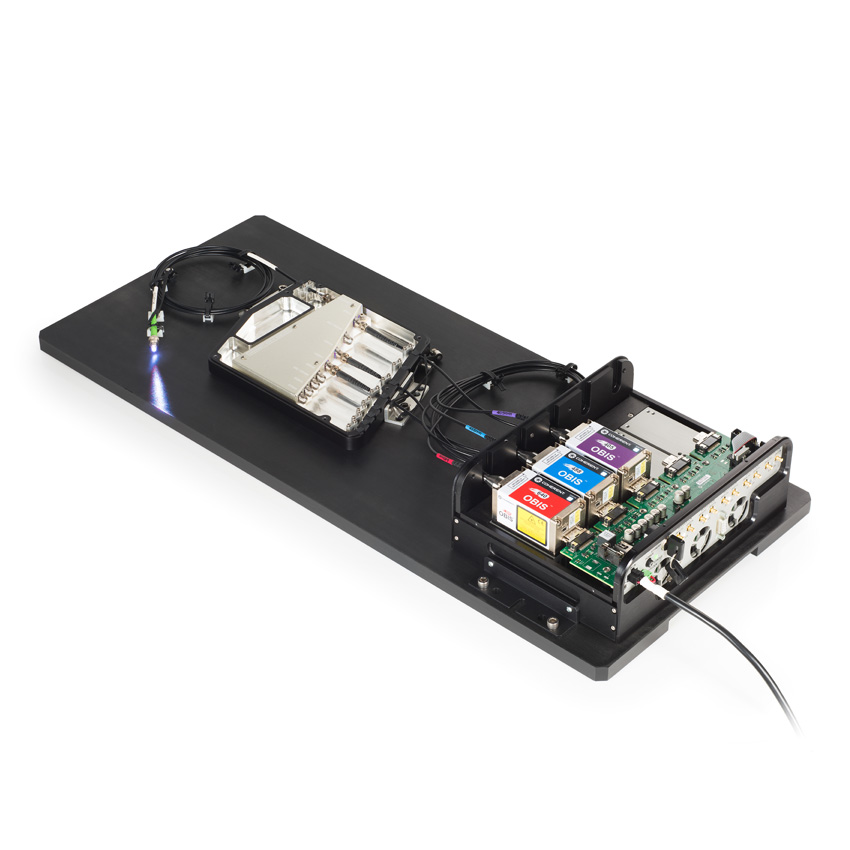

Order OBIS Galaxy Beam Combiner separately.

Note: Fiber Connector FC/UFC is a flat polish tip that is equivalent to a FC/PC.

Specs

General

Free-Space or Fiber Pigtailed
Fiber Pigtailed
Wavelength (nanometers)
405
Wavelength Color
Violet
Power (milliwatts)
50
Beam Type
Fiber Output, FC/UFC, Galaxy
M² (Beam Quality at 90/10 Clip Levels) Maximum
1.1
Beam Asymmetry (%) Minimum
90
Fiber Output Connector
FC/UFC Galaxy
Fiber Numerical Aperture (NA) (1/e²)
0.055
Fiber Cable Length (meters) Minimum
1
Fiber Core Diameter (micrometers)
3
RMS Noise (%) (20 hertz to 20 megahertz) Maximum
0.2
Peak-to-Peak Noise (%, 20 hertz to 20 kilohertz) Maximum
2
Long-term Power Stability (%, 8 hours, ±3°C) Maximum
2
Polarization Ratio (X:1) Minimum
100
USB
Yes
Communication
USB
Communication
RS-485
Laser Drive Mode 1
Continuous Wave (CW)
Laser Drive Mode 2
Analog Modulation
Laser Drive Mode 3
Digital Modulation
Laser Drive Mode 4
Mixed Analog+Digital Modulation
Analog Modulation Bandwidth (kilohertz) Maximum
500
Analog Modulation Rise Time (nanoseconds) Maximum
700
Analog Modulation Fall Time (nanoseconds) Maximum
700
Analog Modulation OFF Power (nanowatts) Maximum
50
Digital Modulation Bandwidth (megahertz) Maximum
150
Digital Modulation Rise Time (nanoseconds) Maximum
2
Digital Modulation Fall Time (nanoseconds) Maximum
2
Digital Modulation OFF Power (nanowatts) Maximum
50
Warm-up Time (minutes, from cold start) Maximum
5
Laser Baseplate Temperature (°C) Maximum
50
Ambient Temperature, Operating Condition (°C) Minimum
10
Ambient Temperature, Operating Condition (°C) Maximum
50
Storage Temperature (°C) Minimum
-20
Storage Temperature (°C) Maximum
60
Shock Tolerance (g, 6 milliseconds) Maximum
30
Humidity, Operating
See Operator's Manual
Power Consumption (watts) Typical
5
Power Consumption (watts) Maximum
13
Laser Safety Classification
3b
LS or LX Type
LX
Operating Voltage (Volts DC)
12
ESD Protection
EN61326-1
Spatial Mode
Single Mode, TEM00
Fiber Output compatible with SM-PM patchcord
No
Wavelength Minimum (nanometers)
404
Wavelength Maximum (nanometers)
406
Dimension, Length (millimeters)
70
Dimension, Width (millimeters)
40
Dimension, Height (millimeters)
38
Weight (kilograms)
0.23
Dimension, Width (inches)
1.57
Dimension, Height (inches)
1.5
Dimension, Length (inches)
2.75
