Beam Delivery Components
<p style="text-align: center;">Consistent laser processing demands accurate transfer of source output to the work surface, and Coherent beam delivery components achieve that with superior optical performance and exceptional mechanical stability, even over long periods of use.</p>
SKU: 1-9563X01
Mechanical holder for both water-cooled and air-cooled d25 collimating units. Including adjustment possibility.

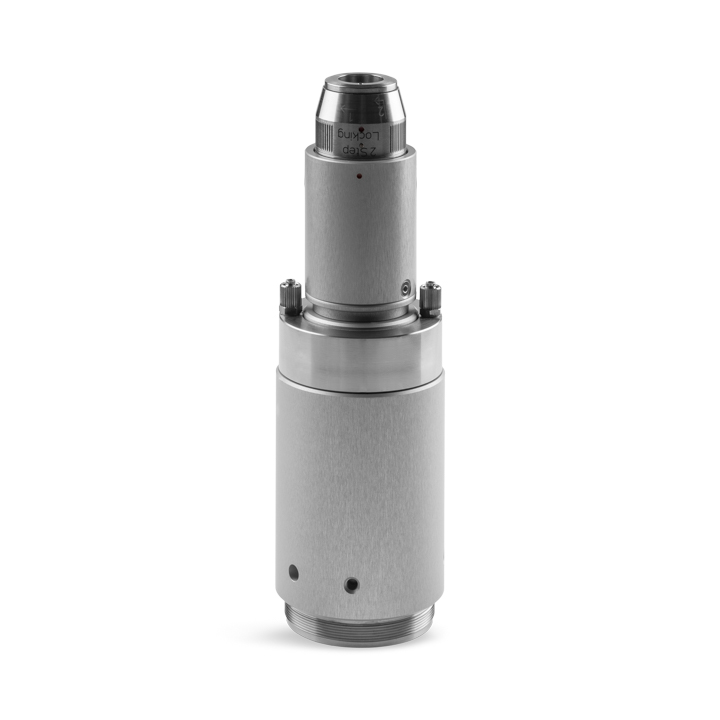

Collimating Unit wc QB, d50, f100, 1030-1090nm
SKU: 102789X01
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 100 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d50, f120, 1030-1090nm
SKU: 102791X01
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 120 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.

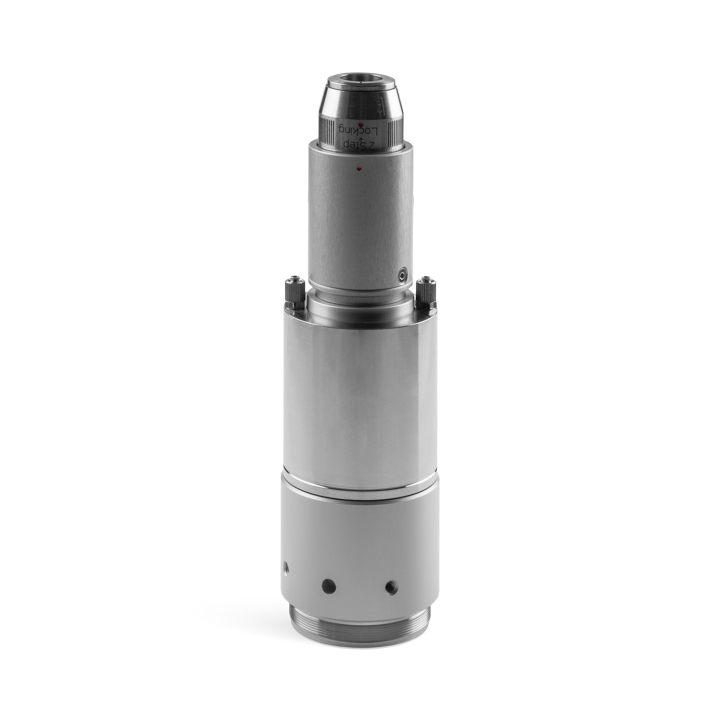

Collimating Unit wc QB, d50, f160, 1030-1090nm
SKU: 102795X01
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 160 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.

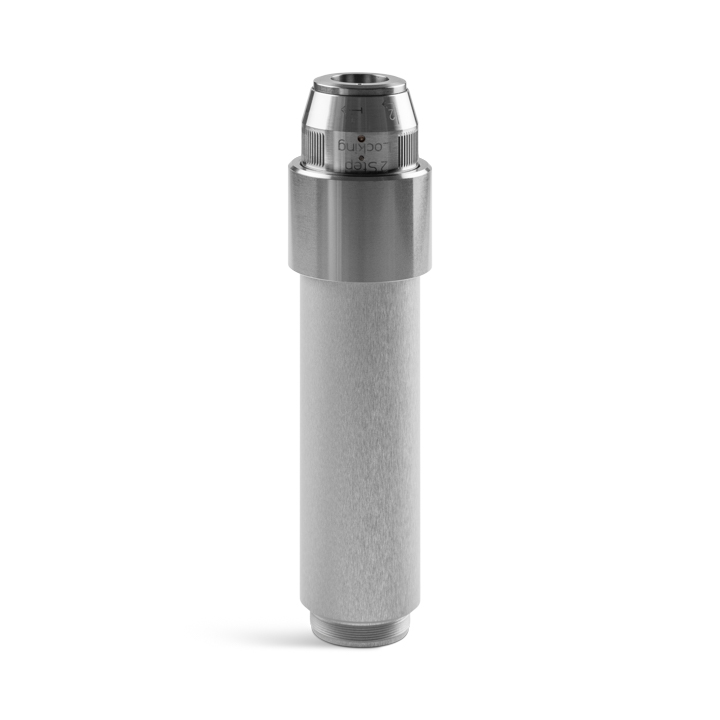

Collimating Unit ac QB, d25, f70, 1030-1090nm
SKU: 102860X01
Air-cooled collimating unit for laser powers up to 3 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 70 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit ac QB, d25, f85, 1030-1090nm
SKU: 102861X01
Air-cooled collimating unit for laser powers up to 3 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 85 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit ac QB, d25, f100, 1030-1090nm
SKU: 102862X01
Air-cooled collimating unit for laser powers up to 3 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 100 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.

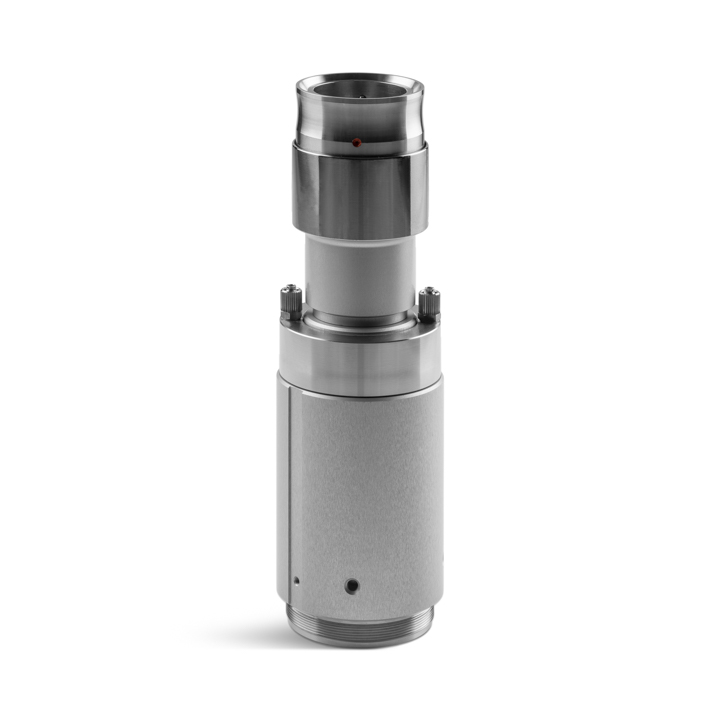

Collimating Unit wc QD, d50, f120, 1030-1090nm
SKU: 103207X01
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 120 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.

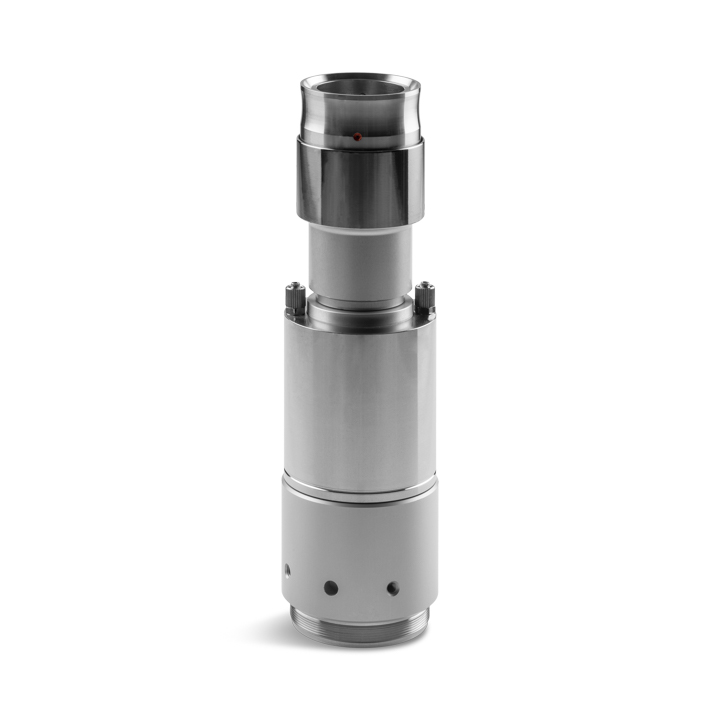

Collimating Unit wc QD, d50, f160, 1030-1090nm
SKU: 103208X01
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 160 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.

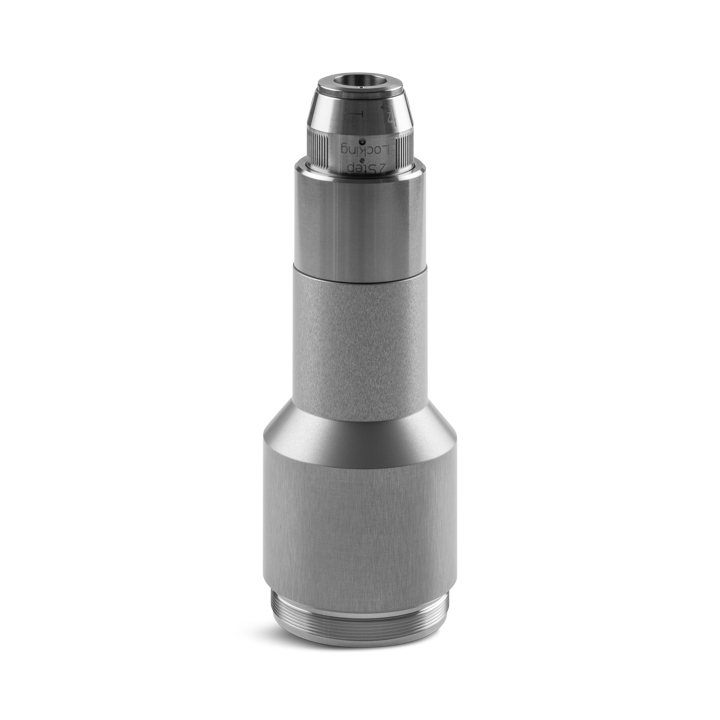

Collimating Unit ac QB, d50, f100, 1030-1090nm
SKU: 106394X01
Air-cooled collimating unit for laser powers up to 5 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 100 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d50, f100, 1030-1090nm
SKU: 1405402
Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 100 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d25, f70, 1030-1090nm
SKU: 2-9656X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 70 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d25, f85, 1030-1090nm
SKU: 2-9657X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 85 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d25, f100, 1030-1090nm
SKU: 2-9658X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 100 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d25, f50, 1030-1090nm
SKU: 2-9670X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 50 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QB, d25, f60, 1030-1090nm
SKU: 2-9671X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Focal length 60 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.

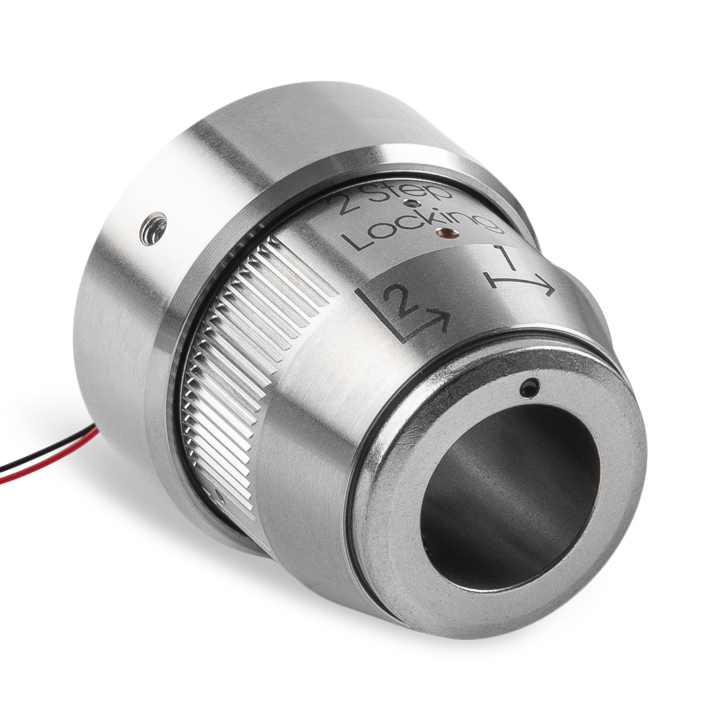

QB Bayonet, fiber output side, compact
SKU: 1-9087X01
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For output side of the fiber optic cable.

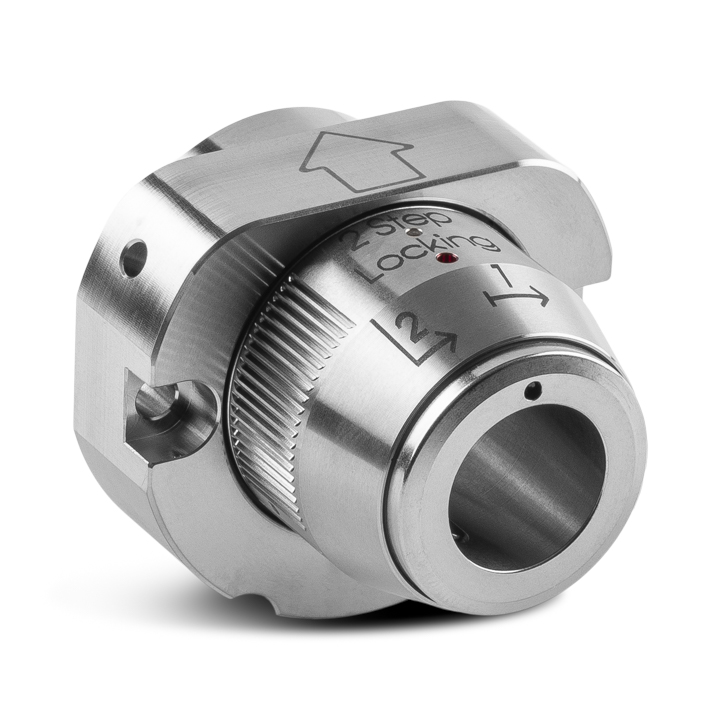

QB Bayonet, fiber output side, compact, short circuit
SKU: 1-9087X02
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For output side of the fiber optic cable.

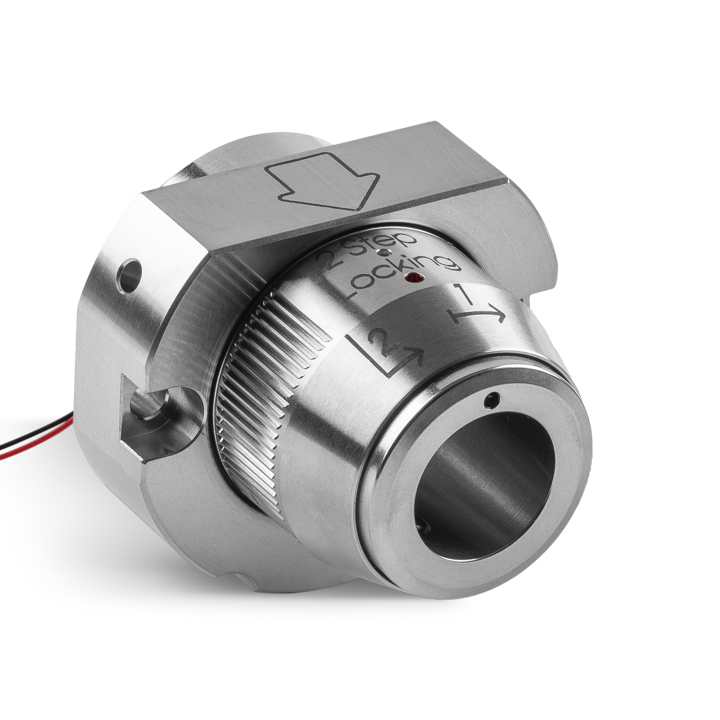

SKU: 1-9308X01
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For input side of the fiber optic cable.
SKU: 1-9398X01
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. Include a built-in temperature switch. For output side of the fiber optic cable.
SKU: 1-9416X01
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For output side of the fiber optic cable.
QB Bayonet, fiber output side, short-circuit
SKU: 1-9416X02
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For output side of the fiber optic cable.

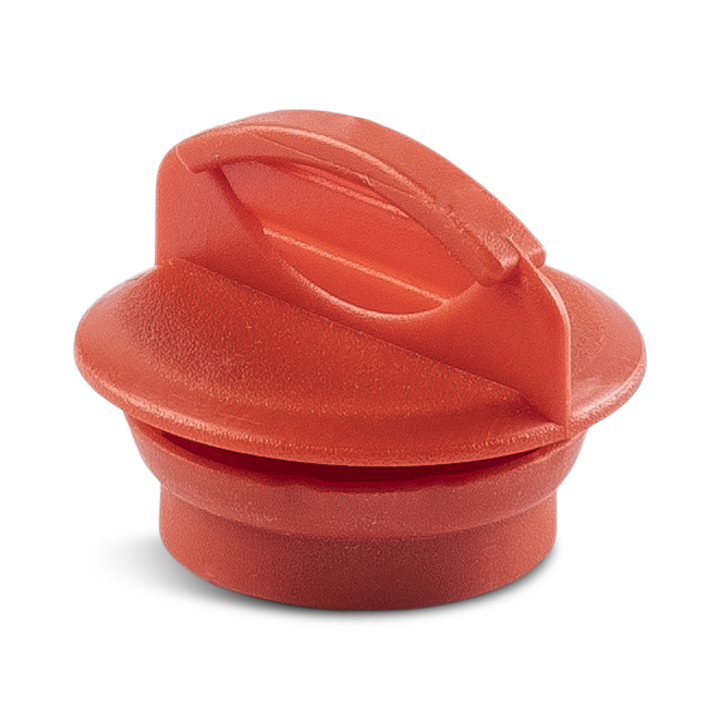

SKU: 1397199
Spare part protection cap for QBH receiver. Seal the fiber interface when no fiber connected.
Cover Slide, d25, 3mm, 1030-1090nm
SKU: 2-1146X03
Cover slide window with 25 mm diameter and 3 mm thickness. AR-coated for wavelengths between 1030-1090 nm. Compatible with Cover slide holder 3-9337X01.
Cover Slide, d50, 3mm, 1030-1090nm
SKU: 0-1010X09
Cover slide window with 50 mm diameter and 3 mm thickness. AR-coated for wavelengths between 1030-1090 nm. Compatible with Cover slide holder 4-9007X01.
