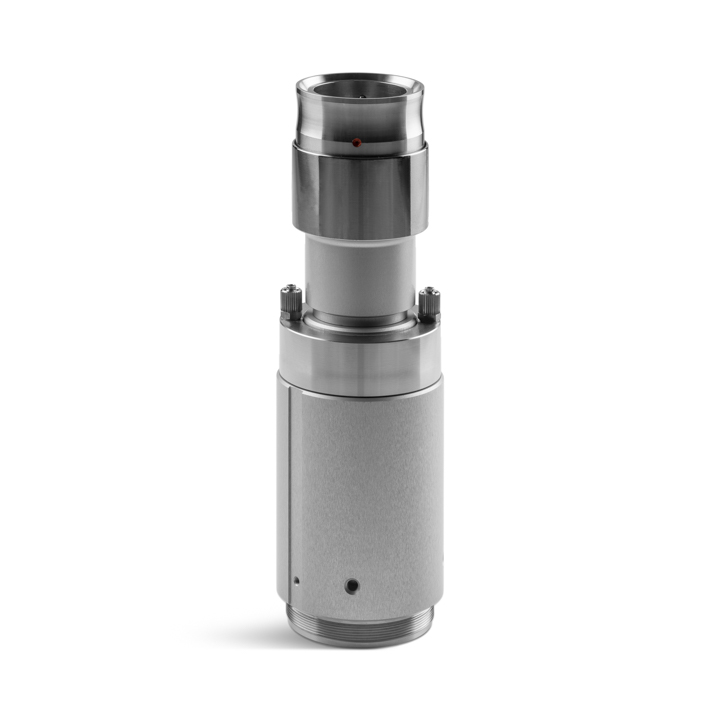

Water-cooled collimating unit for laser powers up to 12 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 100 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.

Price $4,481.00 USD

Details

High-power collimating unit compatible with QD fiber optic cables (LCA, LLK-D, LLK-Auto). Factory aligned lens for plug-and-play performance.

Key Features:

Focal length 100 mm and clear aperture 48 mm
AR-coated for wavelengths between 1030-1090 nm
Water-cooled, max 12 kW cw
Fiber interlock termination including temperature switch
Exit interface M58x1 male

Specs

General

Product Family

Collimating units

Maximum Power CW (kW)

Wavelength (nm)

1030-1090

Focal Length (mm)

100

Optics Diameter (mm)

Clear Aperture (mm)

Max Beam NA at 1/e2 (Gauss, SM)

0.146

Max Beam NA at 1/e2 (Flat-top, MM)

0.203

Fiber Interface

Cooling Method

Water

Resources

Datasheets

View

Accessories

Collimating Unit Holder, d50

1-9361X01

$474.00 USD

Cover Slide Holder, d50, 3mm, 1030-1090nm

4-9007X01

$524.00 USD
