Lasers and Laser Systems
<p style="text-align: center;">Coherent compact lasers feature wavelengths from deep UV to IR and power levels up to 400 mW. Whether your application is machine vision/inspection or life sciences/instrumentation, explore our technologies to find the laser solution that will expand your research.</p>
Compact turnkey diode laser modules
The original smart laser platform
The original smart laser platform (fiber-pigtailed)
StingRay and BioRay diode laser modules
Elliptical Beam and Uniform Line Generating Laser Modules
OEM laser modules offering ultra-low noise or extreme miniaturization
Ultra Low Noise Laser Diode Module, 635 nm, 5 mW, Circular Beam
SKU: 31-0144-000
Ultra Low Noise (ULN) diode laser modules are designed for applications that require extremely low noise or mode-hop-free operation. Sophisticated drive electronics are used to ensure low noise output. Typical RMS noise is less then 0.06% for detector bandwidth from 10 Hz to 10 MHz, with no warm-up time required. ULN is also speckle-free for vision applications. Buy ULN to improve your signal-to-noise, dynamic range and resolution.
-lasers/obis-730-fp-system-lx-1024x1024.jpg)

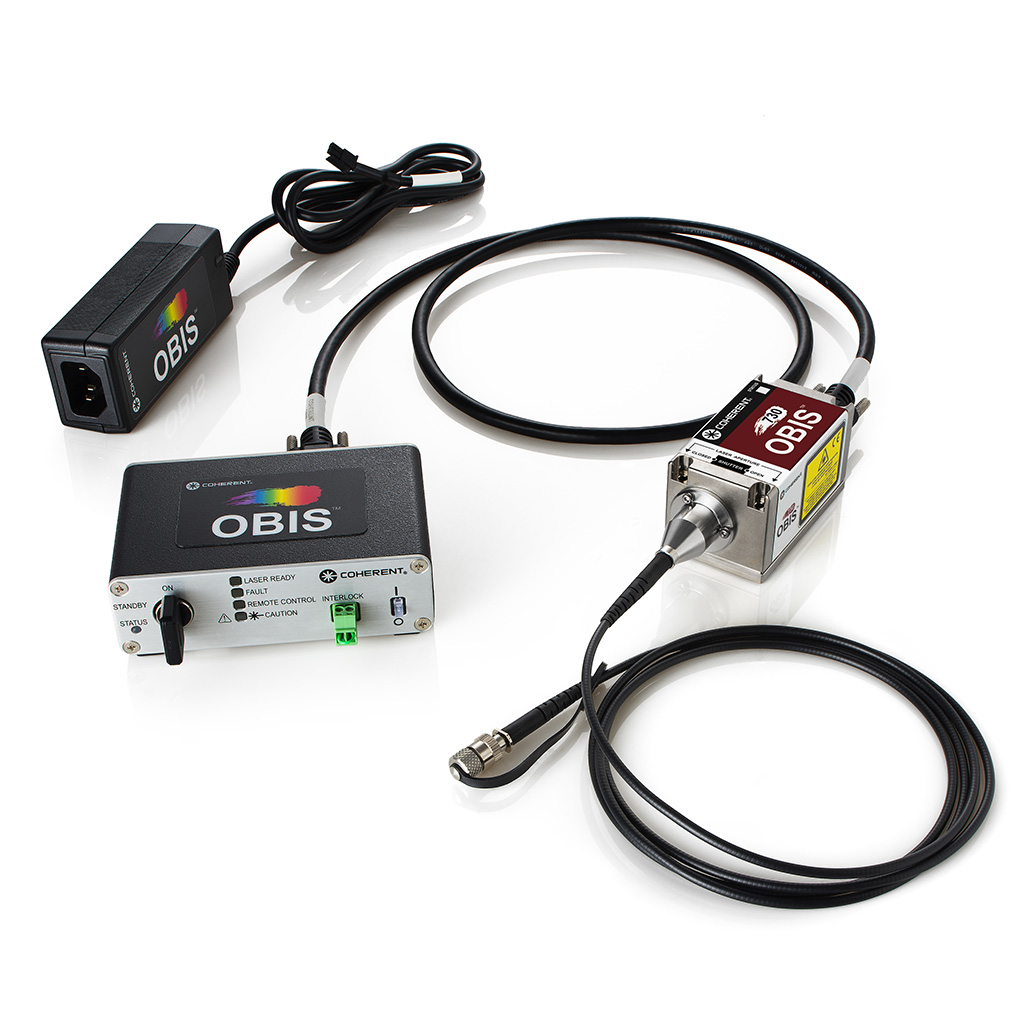

OBIS LX 730 nm 25 mW Laser System, Fiber Pigtail, FC
SKU: 2218811
High Performance Laser System with Remote and Power Supply. 730 nm wavelength with 25 mW of output power, fiber delivered with FC/APC connector.
-lasers/obis-730-fp-head-lx-1024x1024.jpg)

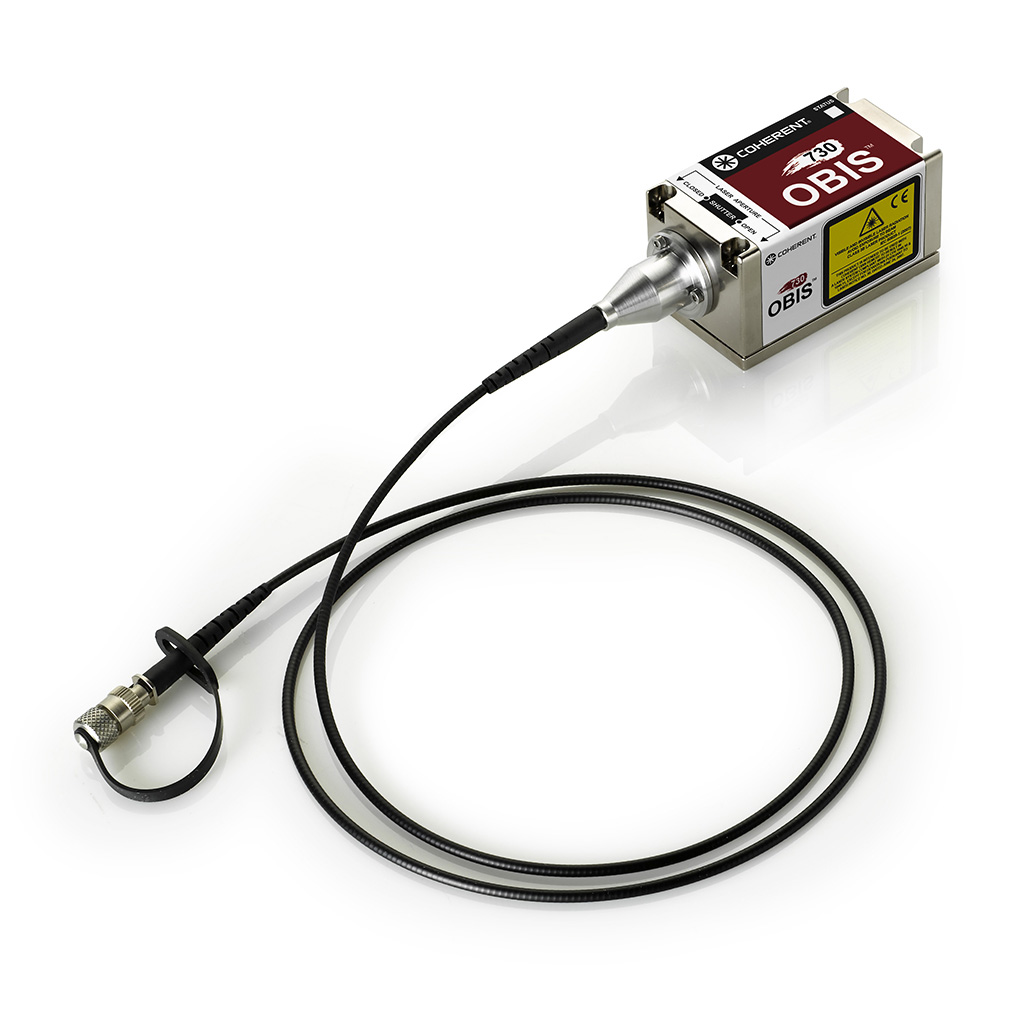

OBIS LX 730 nm 25 mW Laser, Fiber Pigtail, FC
SKU: 2218707
High Performance Laser. 730 nm wavelength with 25 mW of output power, fiber delivered with FC/APC connector.
OBIS LX 633 nm 50 mW Laser, Single Frequency Narrow Linewidth
SKU: 1448283
High Performance Laser. 633 nm wavelength with 50 mW of output power with a superior quality circular beam. Linewidth < 0.3 pm. Single Frequency HeNe Replacement.
OBIS LX 633 nm 50 mW Laser System , Single Frequency Narrow Linewidth
SKU: 1448288
High Performance Laser System with Remote and Power Supply. 633 nm wavelength with 50 mW of output power with a superior quality circular beam. Linewidth < 0.3 pm. Single Frequency HeNe Replacement.

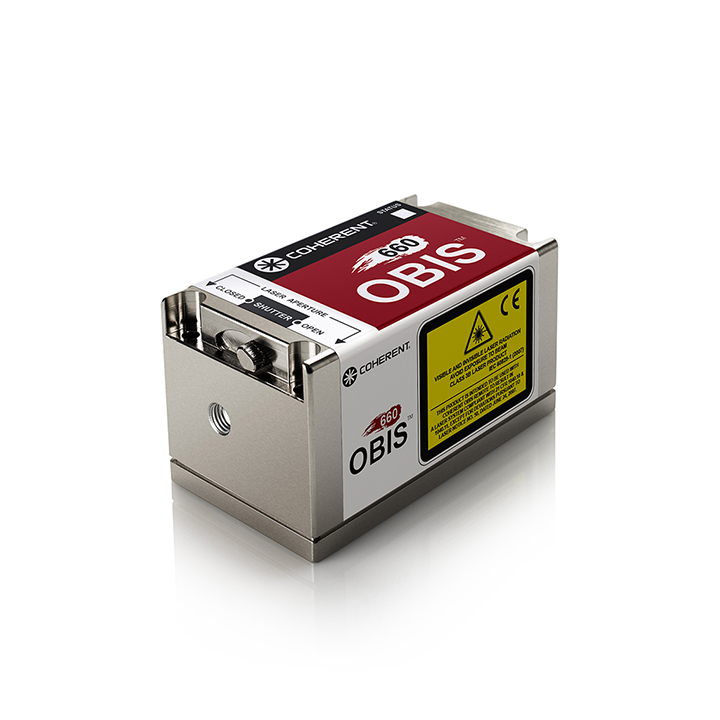

OBIS LX 660 nm 35 mW Laser, Single Frequency Narrow Linewidth
SKU: 1447430
High Performance Laser. 660 nm wavelength with 35 mW of output power with a superior quality circular beam. Linewidth < 1.5 pm.
OBIS LX 660 nm 35 mW Laser System, Single Frequency Narrow Linewidth
SKU: 1448287
High Performance Laser System with Remote and Power Supply. 660 nm wavelength with 35 mW of output power with a superior quality circular beam. Linewidth < 1.5 pm.
OBIS LX 405 nm 40 mW Laser, Single Frequency Narrow Linewidth
SKU: 1448284
High Performance Laser. 405 nm wavelength with 40 mW of output power with a superior quality circular beam. Linewidth < 0.3 pm.
OBIS LX 405 nm 40 mW Laser System, Single Frequency Narrow Linewidth
SKU: 1448286
High Performance Laser System with Remote and Power Supply. 405 nm wavelength with 40 mW of output power with a superior quality circular beam. Linewidth < 0.3 pm.
OBIS LS 561 nm 200 mW Laser System
SKU: 1286477
High Performance Laser System with Remote and Power Supply. 561 nm wavelength with 200 mW of output power with a superior quality circular beam.
OBIS LS 561 nm 150 mW Laser, Fiber Pigtail, FC
SKU: 2213610
High Performance Laser. 561 nm wavelength with 150 mW of output power, fiber delivered with FC/APC connector.
OBIS LS 561 nm 150 mW Laser System, Fiber Pigtail, FC
SKU: 2213560
High Performance Laser System with Remote and Power Supply. 561 nm wavelength with 150 mW of output power, fiber delivered with FC/APC connector.
SKU: 1286476
High Performance Laser. 561 nm wavelength with 200 mW of output power with a superior quality circular beam.
VLM2, 635 nm, 4.2 mW, Circular Beam, Miniature Diode Laser Module
SKU: 0222-200-00
Compact laser module with a circular 1.3 mm output laser beam. Operates on 5 volts DC. Body Diameter of 14.8 mm and 34 mm length. Leads are 914mm unterminated.
VLM2, 635 nm, 0.95 mW, Circular Beam, Miniature Diode Laser Module
SKU: 0221-698-01
Compact laser module with a circular 1.1 mm output laser beam. Operates on 5 volts DC. Body Diameter of 14.8 mm and 34 mm length. Leads are 914mm unterminated.
VLM2, 670 nm, 0.95 mW, Circular Beam, Miniature Diode Laser Module
SKU: 0222-152-01
Compact laser module with a circular 1.3 mm output laser beam. Operates on 5 volts DC. Body Diameter of 14.8 mm and 34 mm length. Leads are 914mm unterminated.
VLM2, 670 nm, 7.5 mW, Elliptical Beam, Miniature Diode Laser Module
SKU: 0223-038-00
Compact laser module with an elliptical 0.3 X 0.8 mm output laser beam. Operates on 5 volts DC. Body Diameter of 14.8 mm and 28 mm length. Leads are 305 mm unterminated.
VLM3, 650 nm, 1.6 mW, Circular Beam, Miniature Diode Laser Module
SKU: 0222-002-01
Compact laser module with a circular 1.3mm output laser beam. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 26 mm length. Leads are 914 mm unterminated.
VLM3, 670 nm, 0.95 mW, Elliptical Beam, Miniature Diode Laser Module
SKU: 0220-970-00
Compact laser module with a elliptical 0.7 X 0.2 mm output laser beam. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 19 mm length. Leads are 914 mm unterminated.
VLM3, 670 nm, 4.2 mW, Elliptical Beam, Miniature Diode Laser Module
SKU: 0220-968-00
Compact laser module with a elliptical 4.6 X 1.3 mm output laser beam. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 19 mm length. Leads are 914 mm unterminated.
VLM3 Laser Line Generator, 670 nm, 3.8 mW, 85 deg Beam Fan Angle
SKU: 0221-153-00
Compact laser module to create a line output laser beam. Line exits at a 85 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.
VLM3 Laser Line Generator, 670 nm, 3.5 mW, 60 deg Beam Fan Angle
SKU: 0221-154-00
Compact laser module to create a line output laser beam. Line exits at a 60 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.
VLM3 Laser Line Generator, 670 nm, 2.5 mW, 30 deg Beam Fan Angle
SKU: 0221-155-00
Compact laser module to create a line output laser beam. Line exits at a 30 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.
VLM3 Laser Line Generator, 635 nm, 0.8 mW, 60 deg Beam Fan Angle
SKU: 0222-603-00
Compact laser module to create a line output laser beam. Line exits at a 60 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm into a AMP 87175-6 Connector.
VLM3 Laser Line Generator, 635 nm, 1.5 mW, 40 deg Beam Fan Angle
SKU: 0222-037-00
Compact laser module to create a line output laser beam. Line exits at a 40 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.
