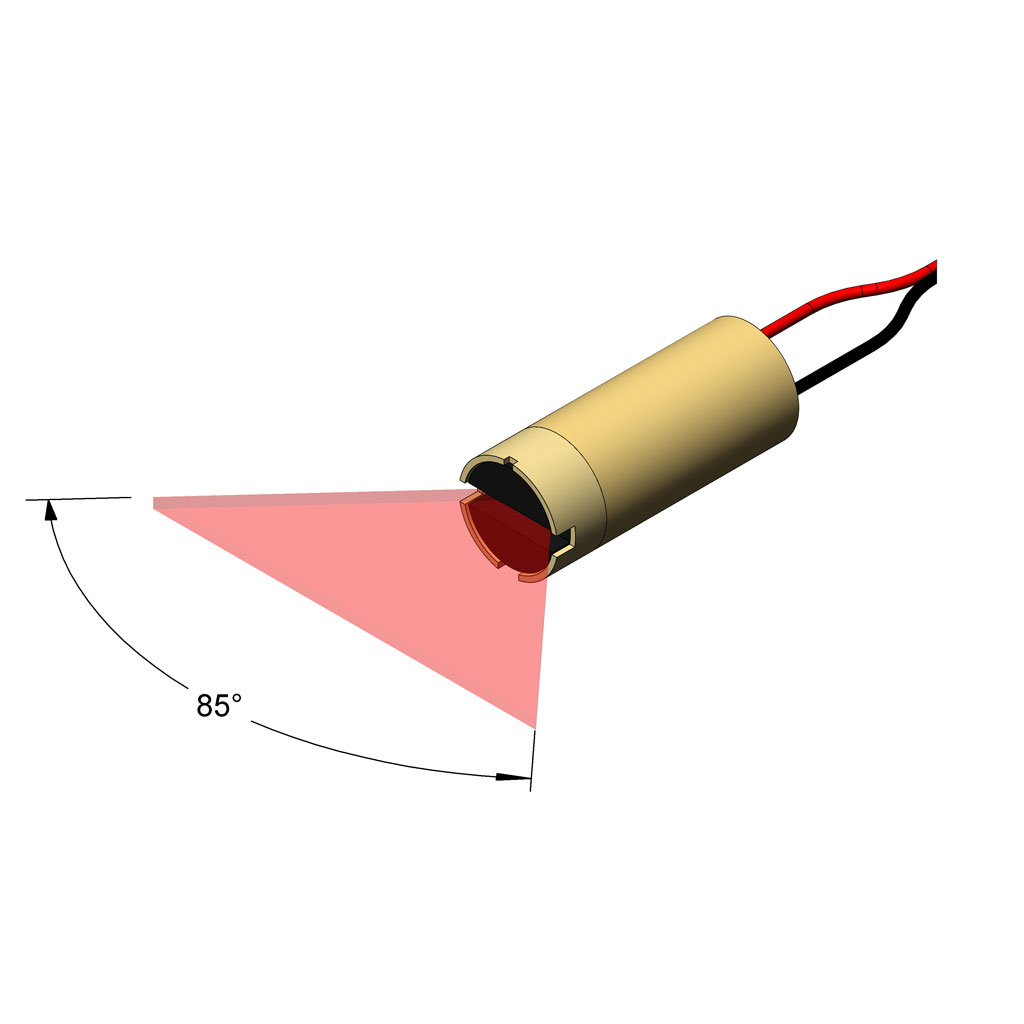

Compact laser module to create a line output laser beam. Line exits at a 85 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.
LG3-85D, 4 mW, 670 nm
Miniature diode laser modules provide the smallest package size and best value. Included inside every module are complete electronics to manage the constant
power laser drive with a closed-light loop based on an internal photodiode. Also included in the electronics are protection circuits to provide a robust system in even the smallest of packages.
Miniature diode laser modules use the patented AlignLock technology to guarantee beam-pointing alignment of less than 4.3 mrad. This allows for simpler and easier integration, as you can trust the unit-to-unit consistency of each beam.
Buy VLM miniature diode laser modules for you applications requiring a compact high-quality laser beam.
