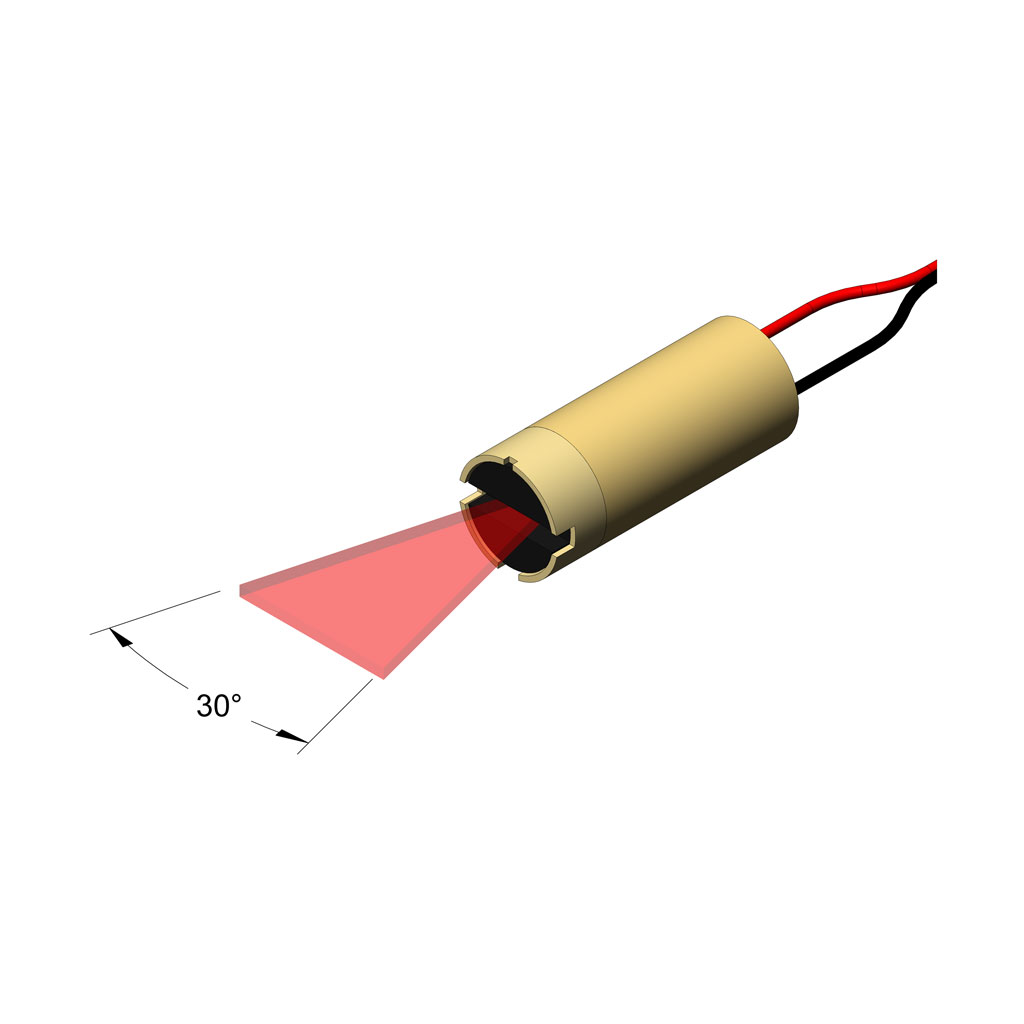

Compact laser module to create a line output laser beam. Line exits at a 30 degree fan angle with a 1mm typical line width. Operates on 3-6 volts DC. Body Diameter of 9.5 mm and 23 mm length. Leads are 914 mm unterminated.

Price $163.00 USD

Details

LG3-30D, 2.5 mW, 670 nm

Miniature diode laser modules provide the smallest package size and best value. Included inside every module are complete electronics to manage the constant power laser drive with a closed-light loop based on an internal photodiode. Also included in the electronics are protection circuits to provide a robust system in even the smallest of packages.
Miniature diode laser modules use the patented AlignLock technology to guarantee beam-pointing alignment of less than 4.3 mrad. This allows for simpler and easier integration, as you can trust the unit-to-unit consistency of each beam.

Buy VLM miniature diode laser modules for you applications requiring a compact high-quality laser beam.

Specs

General

1 Day Ship

Yes

Wavelength (nanometers)

670

Wavelength Color

Red

Beam Type

Line with 30° Fan Angle

Beam Shape

Line

Beam Diameter at 1/e² (millimeters)

Line Fan Angle

with 30° Fan Angle

Spatial Mode

TEM00

Resources

Datasheets

View

Drawings

View

VLM3 Laser Line Generator, 670 nm, 2.5 mW, 30 deg Beam Fan Angle

VLM3 Laser Line Generator, 670 nm, 2.5 mW, 30 deg Beam Fan Angle

Details

Specs

Resources

Accessories

Mount for VLM3 Laser Diode Module. Ball Mount

Power Supply for VLM2 or VLM3 laser modules.

3.5mm Jack Plug for VLM lasers
