Laser Line Module, Top Hat. 450nm, 10mW. Line with 5° Fan Angle. Analog

Laser Line Module, Top Hat. 450nm, 10mW. Line with 5° Fan Angle. Analog

SKU 1288055
UOM Each

StingRay Laser. Laser Line with 5° Fan Angle and Analog Power Control. Precision Uniform Top Hat Laser Line Beam with Adjustable Focus Distance. StingRay laser model: STR-450-10-A-FL-L01-5-S-TX

Price $1,120.00 USD

Details

StingRay lasers are configurable with a variety of wavelengths and output power. Configure the laser output beam type from a Uniform Laser Line with choices in Fan Angle, an Elliptical Dot beam, or choose a Fiber Ready Stingray. Configure from several power control options, RS-232 option, cables and connectors.

Refer to the Specs Tab for all the details.

This StingRay laser offers:

  • Laser Wavelength color: Blue, 450 nm
  • Laser Output Power of 10 mW

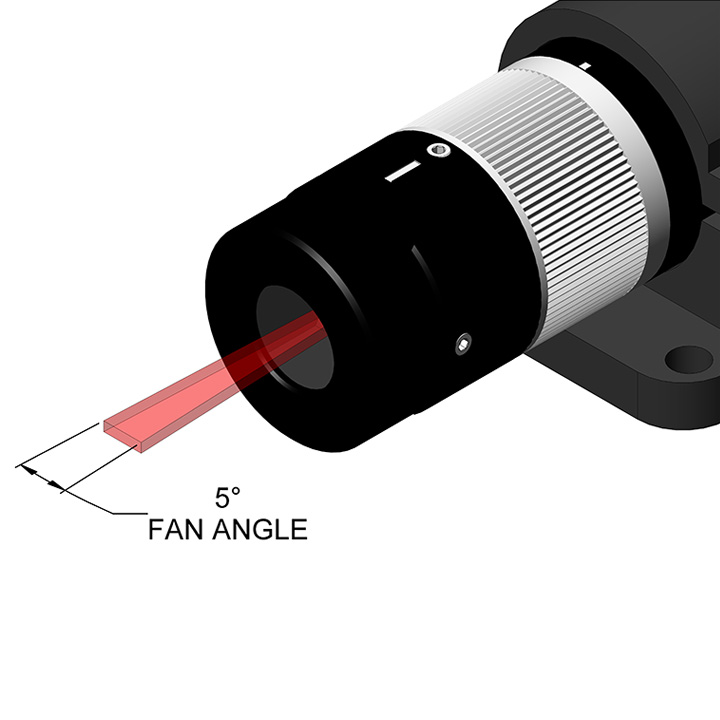

  • Laser Beam Shape is a Tophat Uniform Line with 5° Fan Angle
  • Laser Output Power Control is Analog
  • The laser line width is user adjustable to control the focus location working distance.

StingRay lasers offer exceptional beam quality and reliability.

Choose Stingray for your demanding Machine Vision and Instrumentation illumination. See the StingRay datasheet for all the configuration options.

Coherent StingRay lasers can have delivery as fast as 2 weeks!

Buy now, or contact Coherent to configure your custom StingRay laser.

Specs

General

Wavelength (nanometers)
450
Wavelength Color
Blue
Power (milliwatts)
10
Beam Type
Line with 5° Fan Angle
Beam Shape
Line
M² (Beam Quality at 90/10 Clip Levels) Maximum
1.5
Beam Diameter at 1/e² (millimeters)
1
Beam Divergence (milliradians, full-angle) Maximum
1
Line Fan Angle
with 5° Fan Angle
RMS Noise (%) (20 hertz to 20 megahertz) Maximum
0.5
Peak-to-Peak Noise (%, 20 hertz to 20 kilohertz) Maximum
1
Long-term Power Stability (%, 8 hours, ±3°C) Maximum
2
Pointing Stability Over Temperature (microradians/°C) Maximum
10
Communication
RS-232
Power Control
Analog
Analog Modulation Bandwidth (kilohertz) Maximum
500
Analog Modulation Rise Time (nanoseconds) Maximum
1000
Analog Modulation Fall Time (nanoseconds) Maximum
1000
Analog Modulation OFF Power (nanowatts) Maximum
0
Beam Angle Tolerance from Exit (milliradians) Maximum
3
Warm-up Time (minutes, from cold start) Maximum
5
Ambient Temperature, Operating Condition (°C) Minimum
-10
Ambient Temperature, Operating Condition (°C) Maximum
50
Storage Temperature (°C) Minimum
-20
Storage Temperature (°C) Maximum
60
Power Consumption (watts) Maximum
5
Operating Voltage (Volts DC)
12
ESD Protection
EN61326-1, 8 kV Air Discharge, 4 kV Contact Discharge
Spatial Mode
TEM00
Wavelength Minimum (nanometers)
440
Wavelength Maximum (nanometers)
460
Dimension, Height (millimeters)
19.1
Weight (kilograms)
0.07
