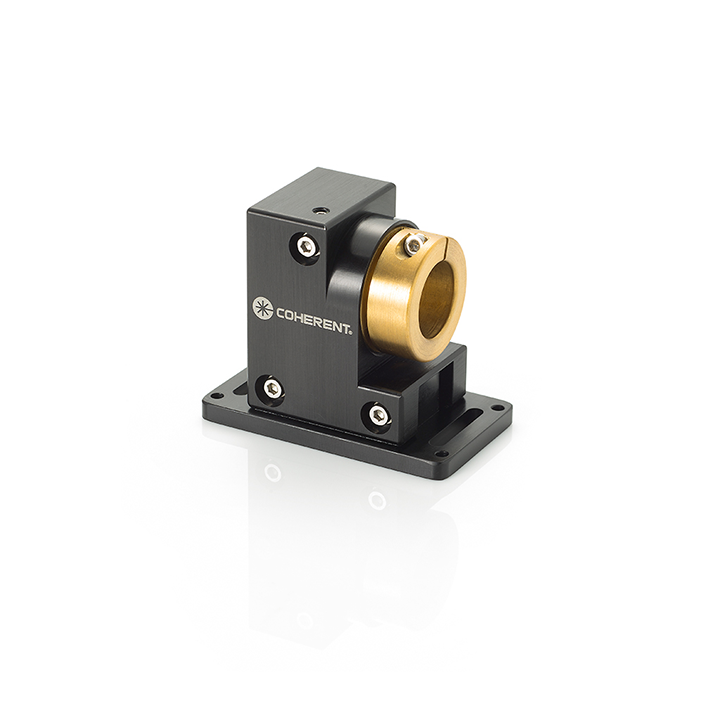

StingRay Multi-Axis Mount

StingRay Multi-Axis Mount

SKU 1280838
UOM Each

The StingRay Multi-Axis Mount provides the user/integrator with the capability of precision movement/alignment of the laser as it is installed into an instrument or application.


This movement consists of:

  • 360-degree rotation about the lasers mechanical axis
  • Translation of the laser system in the X-axis (up to 6 mm)
  • Tilt about the X-axis up to 7 degrees


The StingRay Multi-Axis mount provides multiple mounting options for the user, conforming to the standard StingRay/Obis footprint as well as allowing for more general mounting with two machined slots for quick installation and gross alignment in the Y-axis.

Price $350.00 USD
