Thermopile Power Sensors
<p style="text-align: center;">Sensors incorporating thermopile detectors to measure power of CW and modulated lasers.</p><div style="text-align: center;"><span style="background-color: transparent; color: #000000; float: none; font-size: 12px; font-style: normal; font-weight: 400; text-align: center; text-decoration: none; white-space: normal;">- </span>Range: Approx. 100 µW to 5 kW;<br><span style="background-color: transparent; color: #000000; float: none; font-size: 12px; font-style: normal; font-weight: 400; text-align: center; text-decoration: none; white-space: normal;">- </span>Detector Technology: Thermopile;<br><span style="background-color: transparent; color: #000000; float: none; font-size: 12px; font-style: normal; font-weight: 400; text-align: center; text-decoration: none; white-space: normal;">- </span>Measurement Type: Power (and single pulse Joules);</div>
SKU: 1168342
USB-enabled, 100 mW to 25W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 19 mm diameter active area.
SKU: 1174270
USB-enabled, 100 mW to 20W OEM laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 19 mm diameter active area.
SKU: 1193300
USB-enabled, 100 mW to 100W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 19 mm diameter active area.
SKU: 1275678
USB-enabled, compact laser power sensor for intermittent use from 100 mW to 150W. Beam position sensing, 0.25 to 10.6 µm spectral range, 19 mm diameter active area.
SKU: 1233118
USB-enabled, 50W to 1000W OEM laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 35 mm diameter active area.
SKU: 1174268
USB-enabled, 50W to 1000W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 38 mm diameter active area.
SKU: 1174269
USB-enabled, 50W to 5000W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 56 mm diameter active area.
SKU: 1179504
RS232-enabled, 100 µW to 1W low power sensor, 0.3 to 2 µm spectral range, 19 mm diameter active area with quartz window.
SKU: 1174263
USB-enabled, 0.5 mW to 2W low power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
SKU: 1174264
USB-enabled, 5 mW to 2W power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
SKU: 1174262
USB-enabled, 10 mW to 10W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
SKU: 1174257
USB-enabled, 10 mW to 30W power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
SKU: 1257617
USB-enabled, 5 mW to 2W power sensor, UV coating with 0.15 to 1 µm spectral range, 19 mm diameter active area.
SKU: 1184874
USB-enabled, 5 mW to 10W power sensor, UV coating with 0.15 to 1 µm spectral range, 19 mm diameter active area.

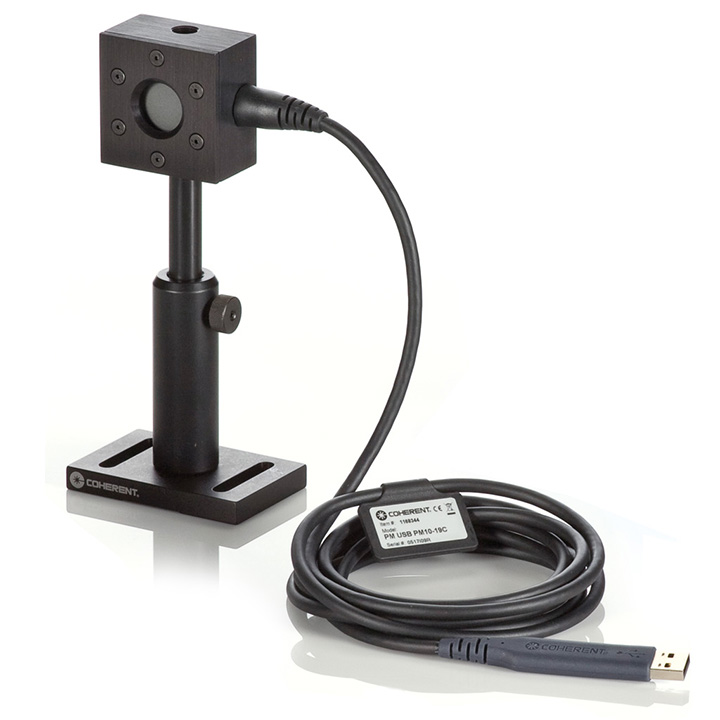

SKU: 1168344
USB-enabled, 10 mW to 10W compact power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
SKU: 1288940
USB-enabled, 300 mW to 100W (intermittent) compact power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area
SKU: 1168346
USB-enabled, 300 mW to 150W compact power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.

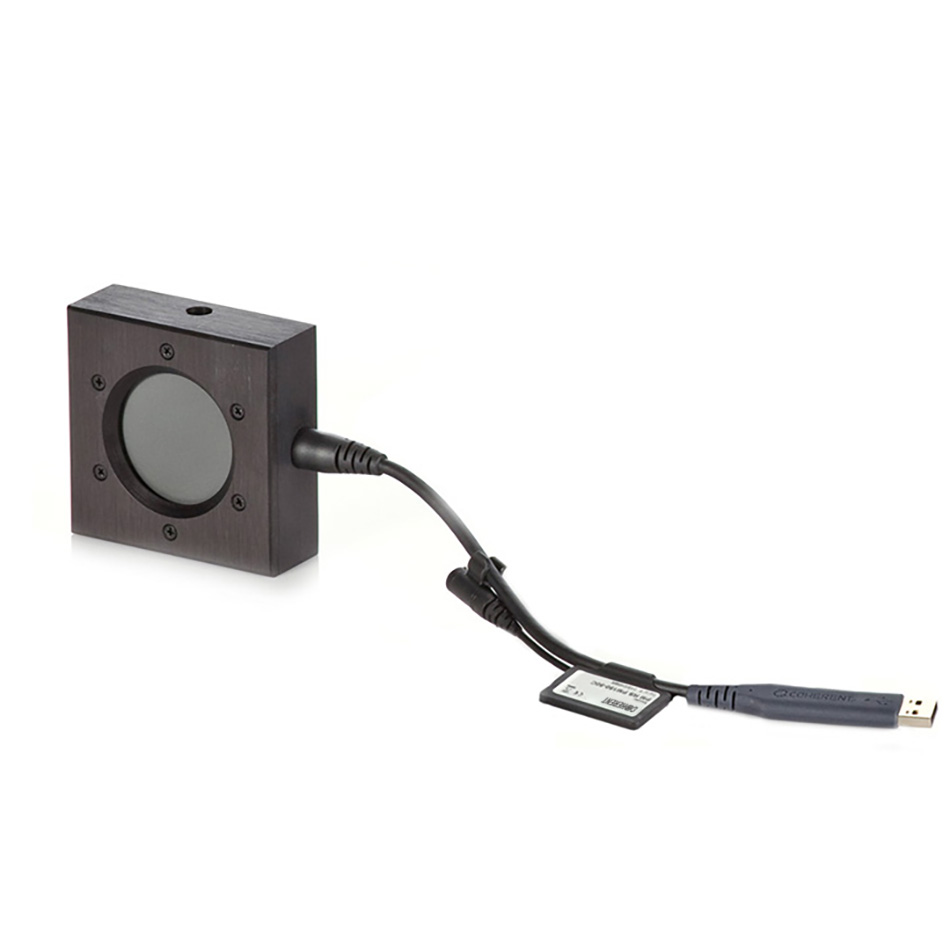

SKU: 1168348
USB-enabled, 300 mW to 150W power sensor, 0.19 to 11 µm spectral range, 50 mm diameter active area.
SKU: 1223336
USB-enabled, 300 mW to 150W power sensor, 0.19 to 11 µm spectral range, 50 mm diameter active area.
PowerMax-USB PM1K-36C Power Sensor
SKU: 1174266
USB-enabled, 50W to 1000W power sensor, 0.19 to 11 µm spectral range, 36 mm diameter active area.
PowerMax-USB PM1K+ Power Sensor
SKU: 1409622
USB-enabled, 5W to 1000W laser power sensor, 0.19 to 11 µm spectral range, BB+ coating, 50 mm diameter active area.
PowerMax-RS PM1K+ Power Sensor
SKU: 1409623
RS232-enabled, 5W to 1000W laser power sensor, 0.19 to 11 µm spectral range, BB+ coating, 50 mm diameter active area.
PowerMax-USB PM3K+ Power Sensor
SKU: 1409628
USB-enabled, 5W to 3000W laser power sensor, 0.19 to 11 µm spectral range, BB+ coating, 50 mm diameter active area.
PowerMax-RS PM3K+ Power Sensor
SKU: 1409629
RS232-enabled, 5W to 3000W laser power sensor, 0.19 to 11 µm spectral range, BB+ coating, 50 mm diameter active area.
PowerMax-USB PM6K+ Power Sensor
SKU: 1402729
USB-enabled, 10W to 6000W laser power sensor, 0.19 to 11 µm spectral range, BB+ coating, 50 mm diameter active area.
