PM1KX-100
PM1KX-100
SKU
1152086
UOM
Each
100W to 1000W power sensor, UV coating with 0.15 to 1 µm spectral range, 100 mm diameter active area.
Price
$8,285.00 USD
Details
Large area, water-cooled kW thermopile sensor with UV coating for measuring lasers between 100W and 1000W.
Key Features:
- 100W to 1000W range
- 100 mm diameter active area
- UV coating
- 0.15 to 1 µm spectral range
- Water-cooled
- ISO 17025 accredited

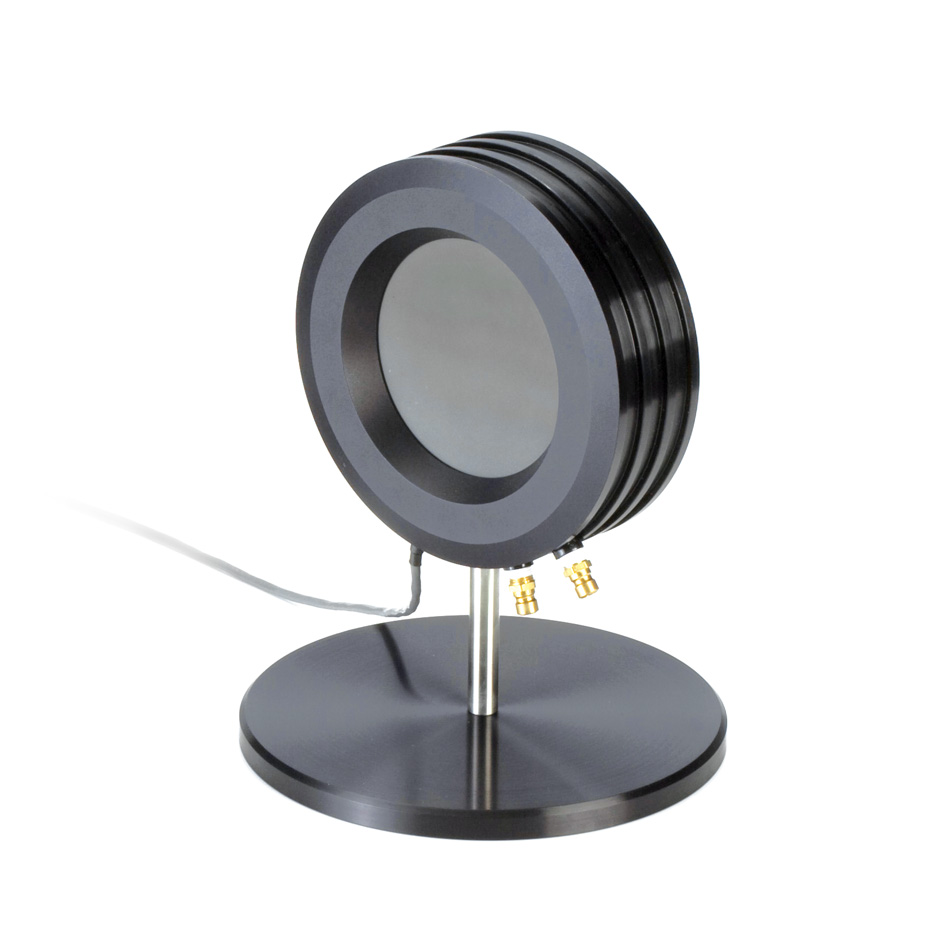

This PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.
Resources
Drawings
Specs
General
Cable Type
PM DB-25
Cooling Type
Water
Power Range
1W to 1000W
Active Area Diameter
100 mm
Detector Coating
UV
Noise Equivalent Power (milliwatts)
20
Maximum Intermittent Power (watts)(<5 minutes)
1500
Wavelength Range (micrometers)
0.15 to 1
Maximum Power Density (kilowatts per square centimeter)
1 to 2.5
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
45
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
1070
Cable Length (meters)
2
