PM300
PM300
SKU
1141474
UOM
Each
1W to 300W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
Price
$2,345.00 USD
Details

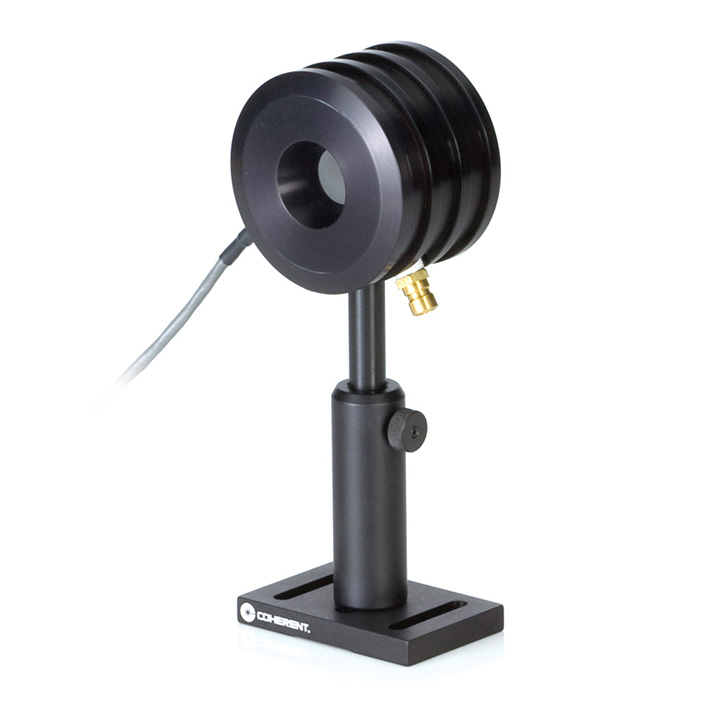

Water-cooled thermopile sensor for measuring pulsed & CW lasers between 1W and 300W.
Key Features:
· 1W to 300W range
· 19 mm diameter active area
· Spectrally flat broadband coating
· 0.25 to 11 µm spectral range
· Water-cooled
· ISO 17025 accredited
This PM300 sensor is a water-cooled laser power sensor intended for measuring lasers up to 300W.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.
Specs
General
Cable Type
PM DB-25
Cooling Type
Water
Power Range
1 W to 300W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
20
Maximum Intermittent Power (watts)(<5 minutes)
450
Wavelength Range (micrometers)
0.25 - 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
