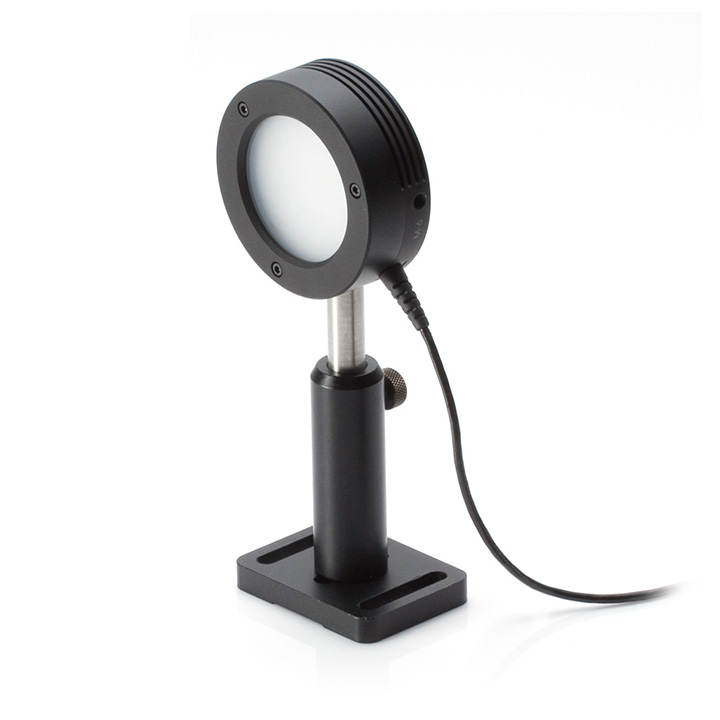

J-50MB-YAG-1561 Energy Sensor
J-50MB-YAG-1561 Energy Sensor
50 μJ to 100 mJ pulse energy sensor, rep. rate up to 50 pps, 0.19 to 2.1 µm spectral range, 35 mm diameter max beam size.
Details
Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 50 μJ to 100 mJ at up to 50 pps.
Key Features:
- 190 nm to 2.1 µm spectral range
- 35 mm diameter active area
- 50 μJ to 100 mJ energy range
- 50 pps repetition rate operation
- ISO 17025 accredited
The J-50MB-YAG-1561 energy sensor is a lower energy model than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.
This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
