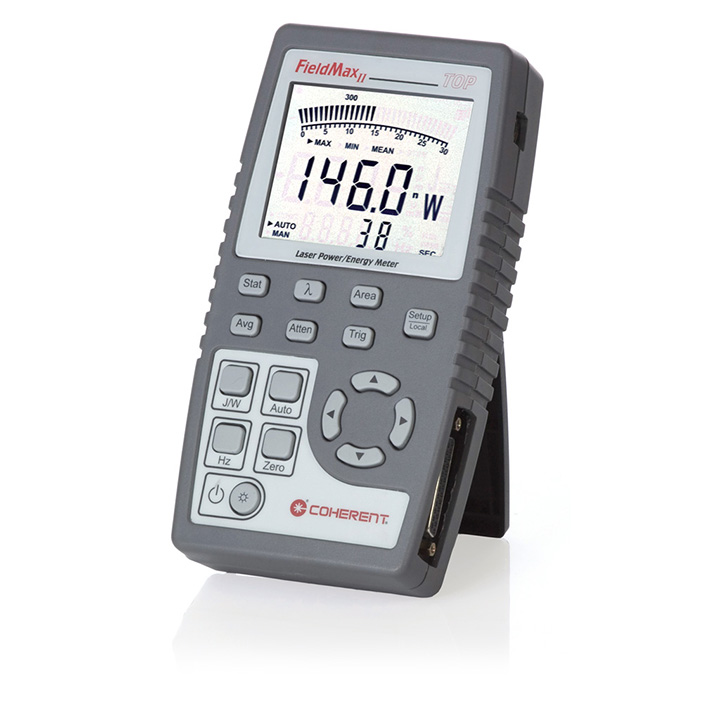

FieldMaxII-TOP - Laser Power and Energy Meter
FieldMaxII-TOP - Laser Power and Energy Meter
SKU
1098580
UOM
Each
Laser power and energy meter, digital reading, statistics, USB PC interface, analog output, 300 pps pulse repetition rate.
Price
$1,780.00 USD
Details
The FieldMaxII-TOP laser power and energy meter functions with a broad range of thermopile, optical and pyroelectric sensors. Together, these sensors enable FieldMaxII-TOP to measure UV, visible, and IR laser output from the nanowatt to the kilowatt range, and to work with CW and pulsed lasers with repetition rates of up to 300 Hz.
Key Features:
- Large, bright, backlit LCD display
- Digital accuracy with analog-like movement for laser tuning
- Works with thermopile, optical, and pyrolectric sensors
- Measures pulse energy up to 300 pps (captures every pulse)
- USB computer interface Windows 8 and 10 [32 and 64 bit] compatible)
- Analog output with user selectable full-scale voltage (1,2, and 5V)
- Rechargeable battery included
- ISO 17025 accredited
Specs
General
External Trigger Input
No
Battery Operation
Yes
Maximum Pyroelectric Rep. Rate (pulses per second)
300
Calibration Uncertainty (%)(k=2)
±1.0%
Measurement Resolution
0.1% of full scale
Thermopile sensor compatibility
Yes
Optical sensor compatibility
Yes
Pyroelectric sensor compatibility
Yes
PowerMax-Pro sensor compatibility
No
Measurement Range
Sensor dependent (reference sensor specifications)
Accuracy - System
Meter accuracy + sensor accuracy
Accuracy - Analog Output
±1.0%
Power Sampling Rate
10 Hz
USB Interface
Yes
RS232 Interface
No
Analog output
Yes
Analog Output
0 to 1, 2, or 5 VDC (selectable)
Display
58 x 73 mm fixed-segment LCD with backlight
Trigger
Internal trigger
Statistical Analysis
Average, Max, Min, Std. Dev.
Size (H x W x D)
200 x 100 x 40 mm (7.87 x 3.94 x 1.57 in.)
Weight
1.0 kg (2.2. lbs.)
Computer Interface
USB, LabVIEW, PC application
Compliance
CE, RoHS, WEEE, ISO 17025
Instrument Power
12VDC - center positive; (90 to 260 VAC, 50/60 Hz AC power adapter included)
Accessories
12V Power Supply for FieldMate, FieldMaxII, LabMax, LabMax-Pro, StingRay
1105427
$85.00 USD
7.2V 750 mAh NiMH Rechargeable Battery for FieldMaxII
1092395
$60.00 USD
Soft Carrying Case for FieldMaxII, LabMax
1122466
$60.00 USD
