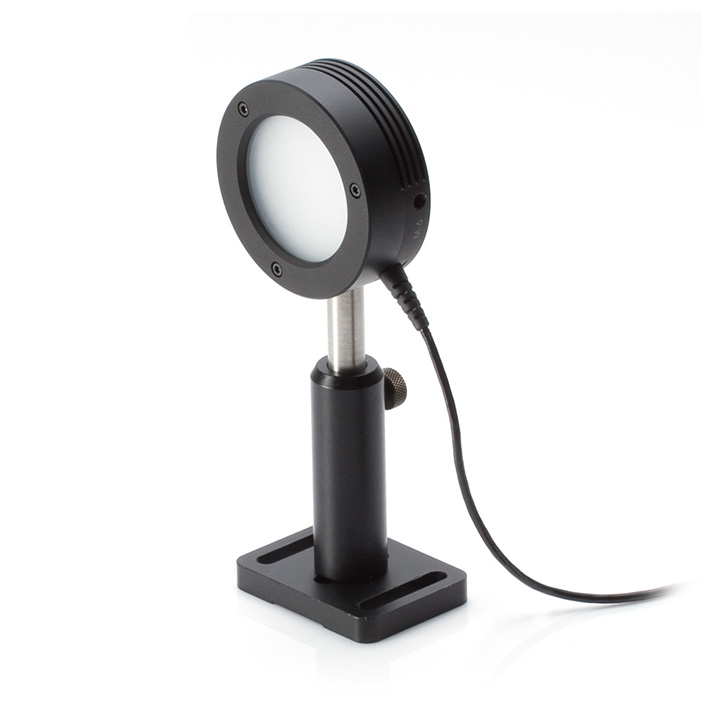

J-50MB-YAG-1528 Energy Sensor

J-50MB-YAG-1528 Energy Sensor

SKU 1144701
UOM Each

1.5 mJ - 3J pulse energy sensor, rep. rate up to 300 pps, 0.19 to 2.1 µm spectral range, 50 mm diameter max beam size.

Price $2,105.00 USD

Details

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1.5 mJ - 3J at up to 300 pps.

 Key Features:

  • 190 nm to 2.1 µm spectral range
  • 35 mm diameter active area
  • 5 mJ - 3J energy range
  • 300 pps repetition rate operation
  • ISO 17025 accredited

The J-50MB-YAG-1528 energy sensor is a higher repetition rate model than the standard J-50MB-YAG.  This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.

This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A USB-direct (PN 1191439) model is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Specs

General

Cable Type
J DB-25
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
1.5 mJ - 3 J
Noise Equivalent Energy
<50 µJ
Maximum Average Power (watts)
20
Maximum Pulse Width (microseconds)
57
Maximum Energy Density (millijoules per square centimeter)
14000 (at 1064 nm, 10 ns) 2800 (at 532 nm, 10 ns) 750 (at 355 nm, 10 ns) 1000 (at 266 nm, 10 ns)
Diffuser
YAG
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5
Maximum Beam Size (millimeters)
35

Resources

Datasheets
View
Drawings
View

Accessories

Large Heat Sink

1123432

$195.00 USD
