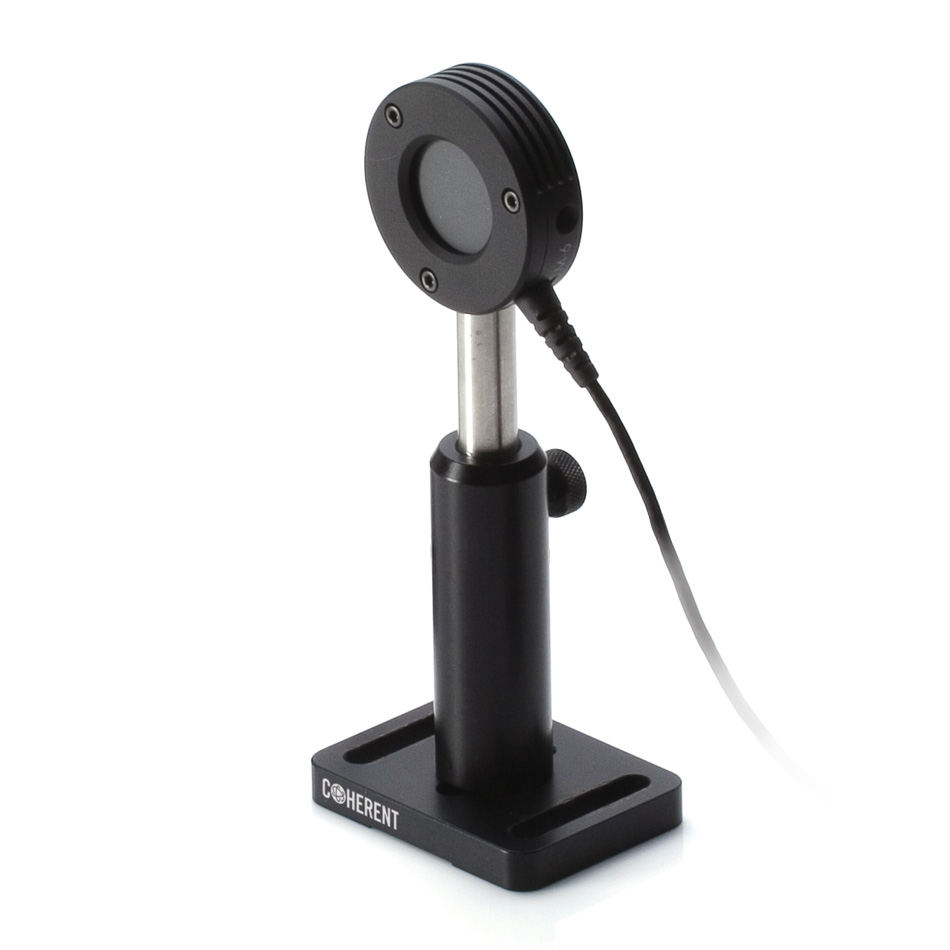

J-25MB-HE Energy Sensor

J-25MB-HE Energy Sensor

SKU 1110746
UOM Each

500 µJ to 1J pulse energy sensor, rep. rate up to 1000 pps, MaxBlack coating with 0.19 to 12 µm spectral range, 25 mm diameter active area.

Price $1,675.00 USD

Details

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 500 µJ to 1J at up to 1000 pps.



Key Features:

  • 190 nm to 12 µm spectral range
  • 25 mm diameter active area
  • 500 µJ to 1J energy range
  • 1000 pps repetition rate operation
  • ISO 17025 accredited

The J-25MB-HE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A USB-direct (PN 1191442) model is available.

A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Specs

General

Cable Type
J DB-25
Active Area Diameter
25 mm
Detector Coating
MaxBlack
Energy Range
500 µJ - 1 J
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<16 µJ
Maximum Pyroelectric Rep. Rate (pulses per second)
1000
Maximum Average Power (watts)
5
Maximum Pulse Width (microseconds)
17
Maximum Energy Density (millijoules per square centimeter)
500 (@1064nm, 10ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5

Resources

Datasheets
View
Drawings
View

Accessories

Medium Heat Sink

1123431

$160.00 USD

Pyroelectric Test Slide - MB Coating

0011-4314

$75.00 USD

Small Heat Sink

1123430

$135.00 USD
