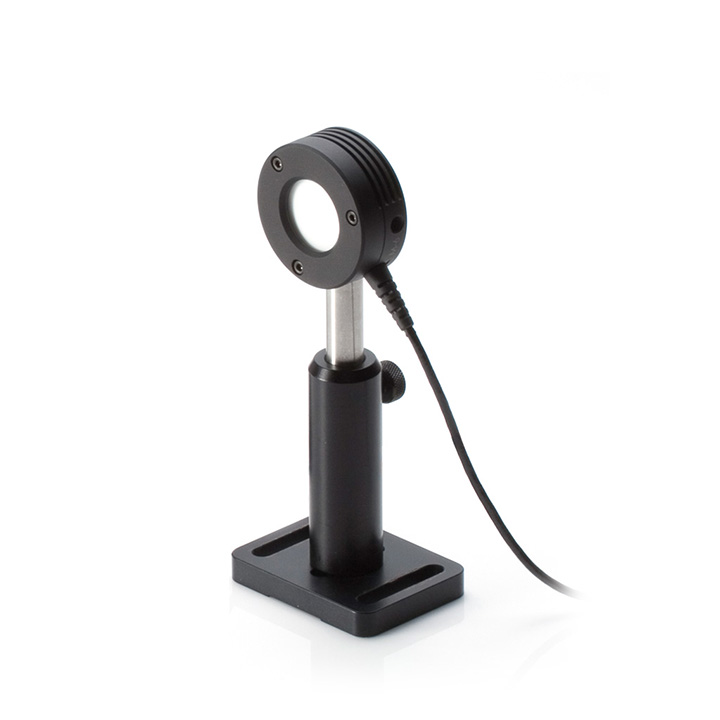

J-25MB-IR Energy Sensor
J-25MB-IR Energy Sensor
1.5 mJ to 3J pulse energy sensor, rep. rate up to 20 pps, 0.5 to 2.1 µm spectral range, 12.5 mm diameter max beam size.
Details
Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1.5 mJ to 3J at up to 20 pps.
Key Features:
- 532 nm to 2.1 µm spectral range
- 5 mm maximum beam diameter
- 5 mJ to 3J energy range
- 20 pps repetition rate operation
- ISO 17025 accredited
The J-25MB-IR energy sensor is specifically design for high energy and high peak power Nd:YAG and Holmium lasers. This sensor can be used with beams up to 12.5 mm in diameter.
This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.
A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
