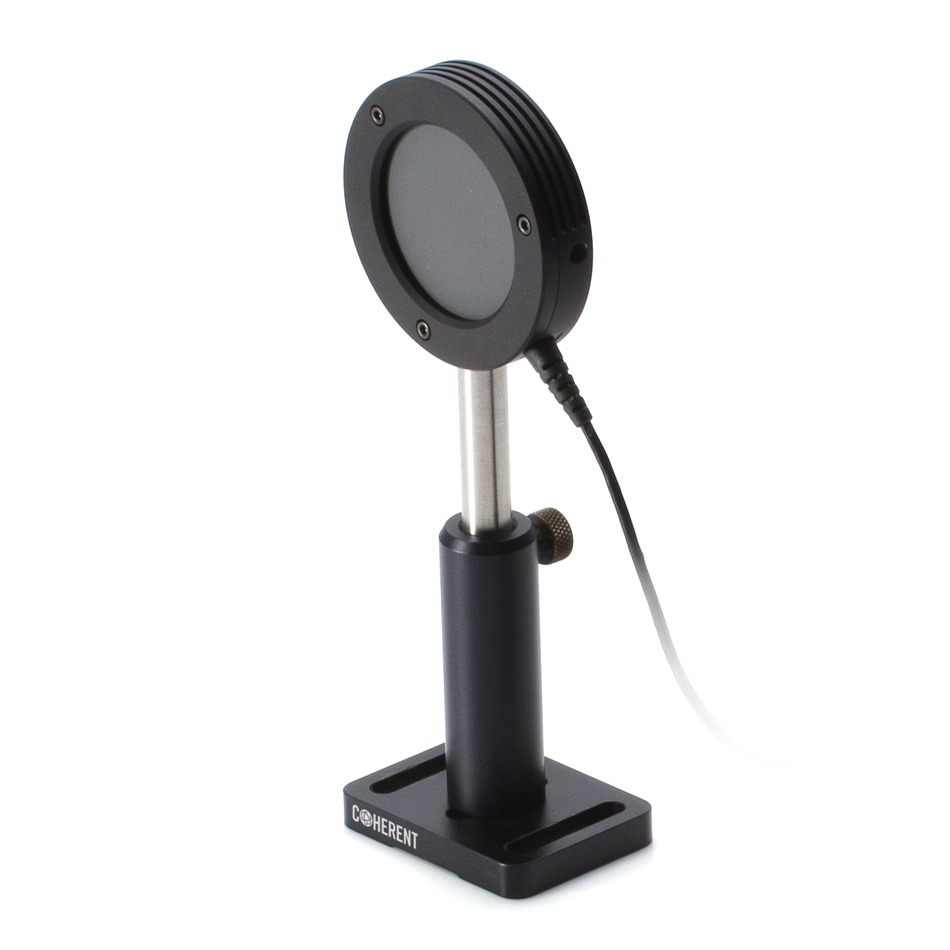

J-50MB-LE Energy Sensor

J-50MB-LE Energy Sensor

SKU 1110576
UOM Each

250 µJ to 500mJ pulse energy sensor, rep. rate up to 300 pps, MaxBlack coating with 0.19 to 12 µm spectral range, 50 mm diameter active area.

Price $1,855.00 USD

Details

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 250 µJ to 500mJ at up to 300 pps.

 Key Features:

  • 190 nm to 12 µm spectral range
  • 50mm diameter active area
  • 250 µJ to 500mJ energy range
  • 300 pps repetition rate operation
  • ISO 17025 accredited

The J-50MB-LE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A USB-direct (PN 1191443) model is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Resources

Datasheets
View
Drawings
View

Specs

General

Cable Type
J DB-25
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
250 µJ - 500 mJ
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<8 µJ
Wavelength Range (micrometers)
0.19-12
Maximum Average Power (watts)
10
Maximum Pulse Width (microseconds)
57
Maximum Energy Density (millijoules per square centimeter)
500 (@1064nm, 10ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5

Accessories

Large Heat Sink

1123432

$195.00 USD

Pyroelectric Test Slide - MB Coating

0011-4314

$75.00 USD
