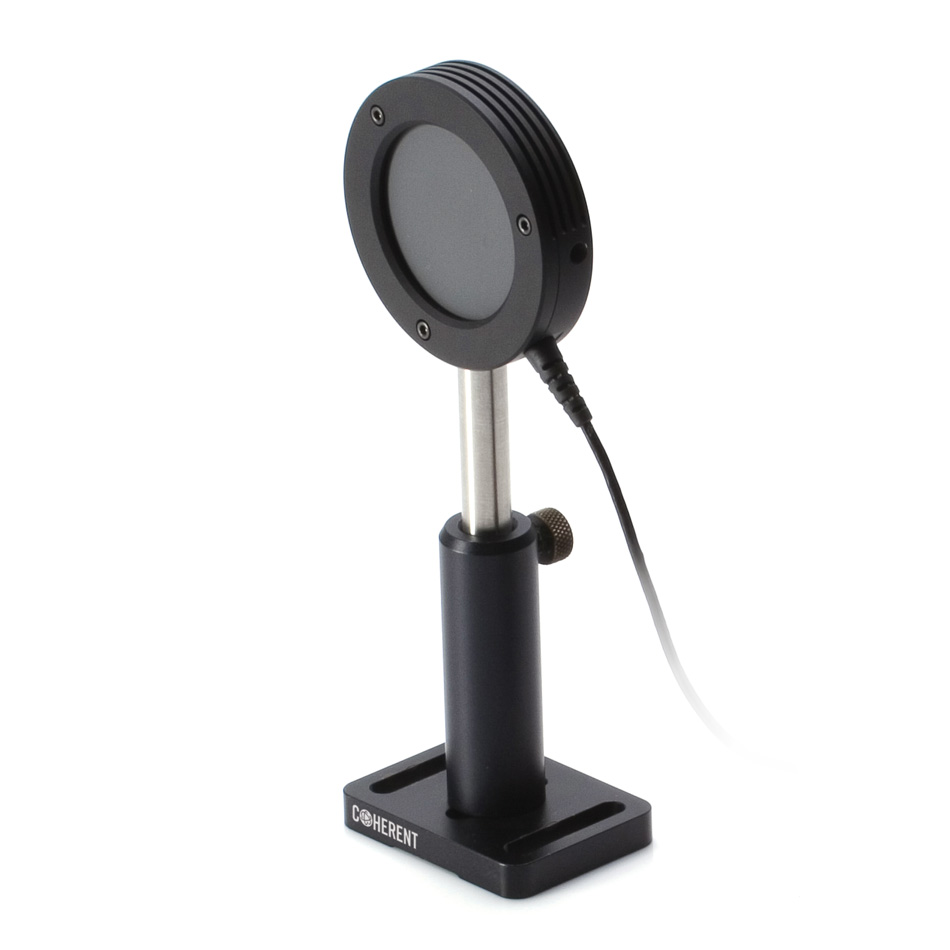

J-50MB-HE Energy Sensor

J-50MB-HE Energy Sensor

SKU 1110573
UOM Each

1 mJ to 2J pulse energy sensor, rep. rate up to 300 pps, MaxBlack coating with 0.19 to 12 µm spectral range, 50 mm diameter active area.

Price $1,855.00 USD

Details

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 1 mJ to 2J at up to 300 pps.

Key Features:

  • 190 nm to 12 µm spectral range
  • 50mm diameter active area
  • 1 mJ to 2J energy range
  • 300 pps repetition rate operation
  • ISO 17025 accredited

The J-50MB-HE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

USB-direct (PN 1191444) and RS232-direct (PN 1191432) models are available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Specs

General

Cable Type
J DB-25
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
1 mJ - 2 J
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<33 µJ
Maximum Pyroelectric Rep. Rate (pulses per second)
300
Maximum Average Power (watts)
10
Maximum Pulse Width (microseconds)
17
Maximum Energy Density (millijoules per square centimeter)
500 (@1064nm, 10ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5
