OBIS Bandpass Filter can reduce noise in fluorescent applications that are sensitive to shorter or longer wavelength emissions.

OBIS Bandpass Filter conveniently threads into the front of the OBIS LX laser to remove long wavelength emissions.

Details:

• Applies to OBIS LX Single Frequency lasers.
• Transmission of > 90% at 785 nm
• Blocking Band OD > 5 at 613 to 777 nm
• Blocking Band OD > 6 at 723 to 773 nm
• Blocking Band OD > 6 at 697 to 863 nm
• Blocking Band OD > 5 at 793 to 1213 nm
• Bandpass filter is specifically mounted to avoid internal retro-reflection from the filter.

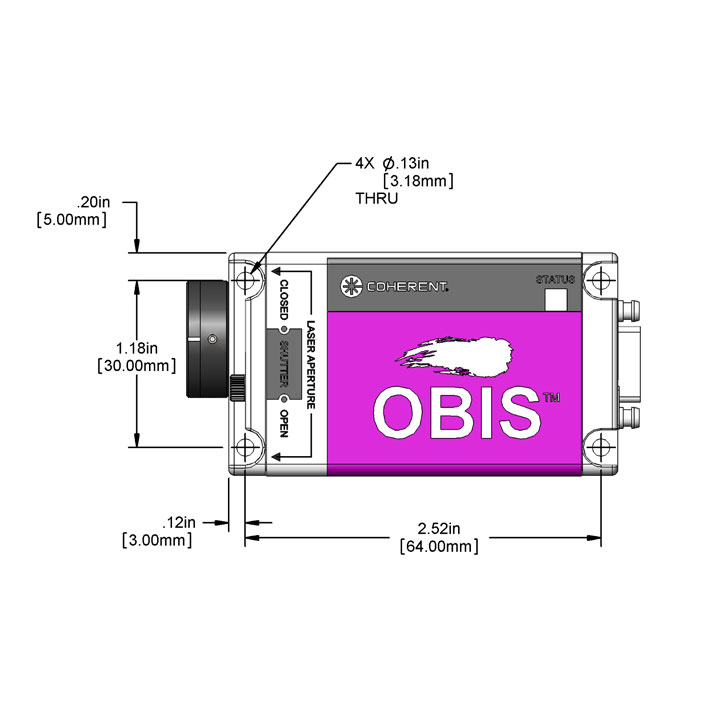

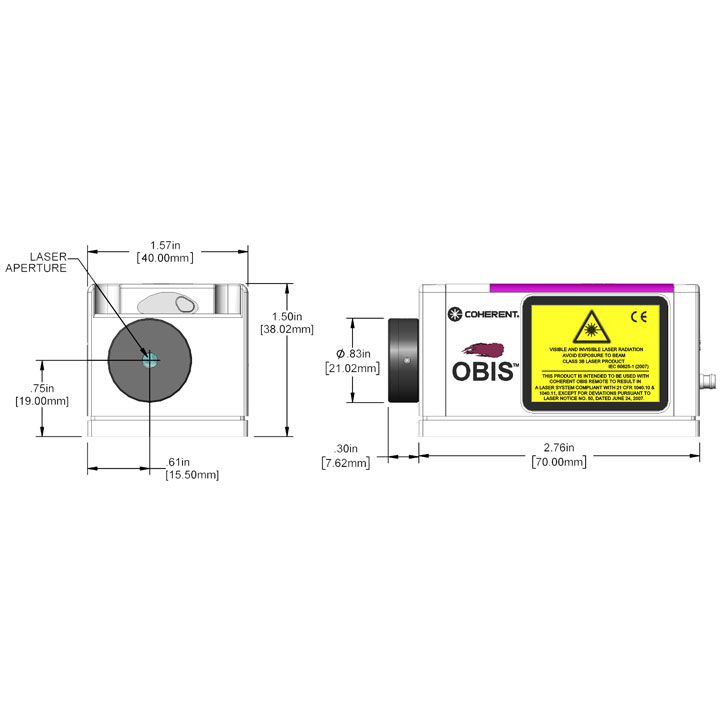

• Bandpass filter has a diameter of 21mm and extends the front of the laser by 7.6mm.

Buy OBIS LX Bandpass filter to improve your fluorescent detection signal to noise ratio.

Other Bandpass filters available at 405 and 633 nm.
