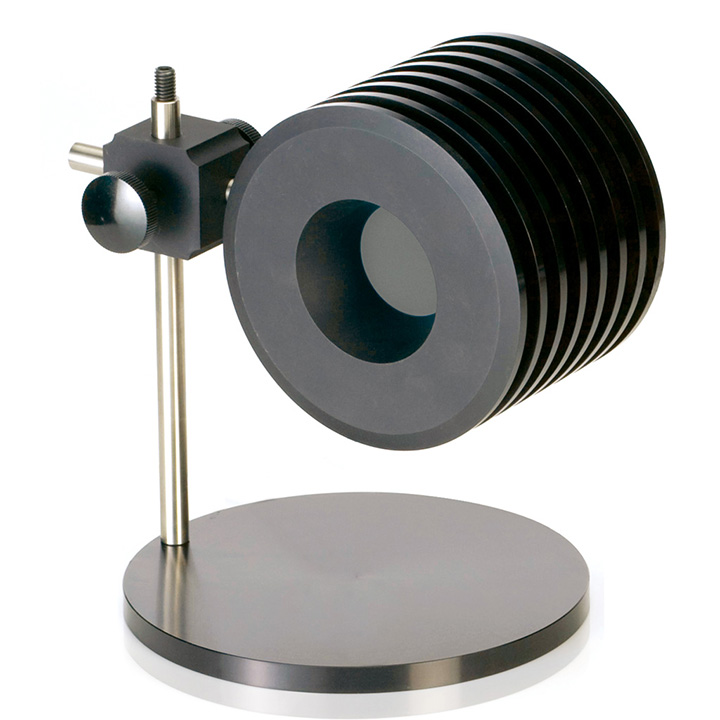

PowerMax-USB PM150-50
PowerMax-USB PM150-50
SKU
1223336
UOM
Each
USB-enabled, 300 mW to 150W power sensor, 0.19 to 11 µm spectral range, 50 mm diameter active area.
Price
$2,920.00 USD
Details
Thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. Direct USB interface.
Key Features:
· 300 mW to 150W range
· 50 mm diameter active area
· Spectrally flat broadband coating
· 0.19 to 11 µm spectral range
· Convective air-cooled
· Direct USB interface
· ISO 17025 accredited
This PowerMax-USB PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098398) is available.
Specs
General
Cable Type
USB
Cooling Type
Air
Power Range
300 mW to 150W
Active Area Diameter
50 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
1
Maximum Intermittent Power (watts)(<5 minutes)
300
Long-Pulse Joules Range (joules)
1 to 150
Wavelength Range (micrometers)
0.19 to 11 µm
Maximum Power Density (kilowatts per square centimeter)
6 kW/cm²
Maximum Energy Density (millijoules per square centimeter)
600 mJ/cm² 10 ns, 1064 nm
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
2.5
