USB-enabled, 0.5 mW to 2W low power sensor, 0.3 to 2 µm spectral range, 10 mm diameter active area with quartz window.
Low power thermopile for measuring pulsed & CW lasers between 0.5 mW and 2W. Includes a quartz window to more effectively eliminate thermal background radiation. Direct USB interface.
· 500 µW to 2W range
· 10 mm diameter active area
· 0.3 to 2 µm spectral range
· Quartz window
· Convective air-cooled
· Direct USB interface
· ISO 17025 accredited

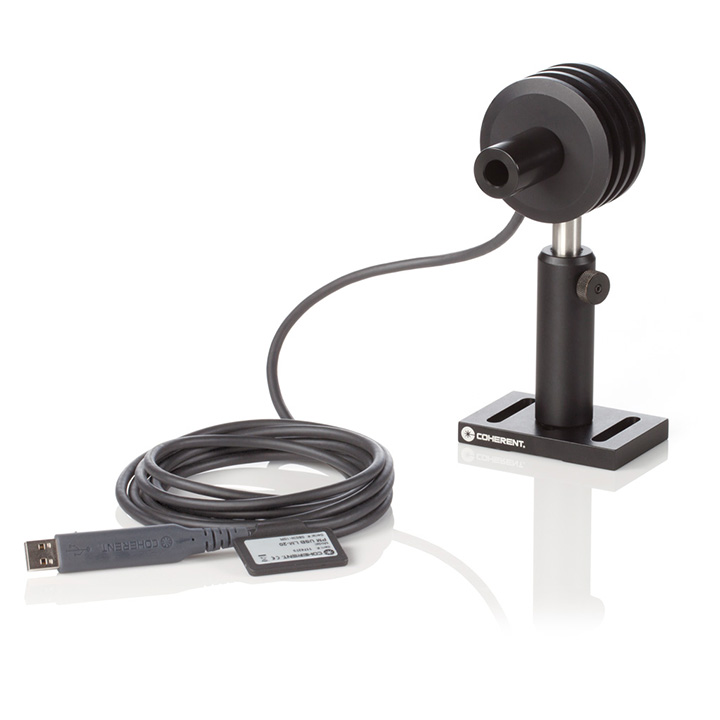

This PowerMax-USB PM3Q sensor is an amplified thermopile power sensor intended for measuring low power lasers down into the mW range. It includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.3 to 2.1 µm.
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098419) is available.
For a wider spectral range, the similar PowerMax-USB PM3 model (PN 1174263) does not include the quartz filter, enabling a spectral range of 0.19 to 11 µm.
