Conductively cooled OEM thermopile for measuring pulsed & CW lasers up to 20W with beam position measurement. Direct USB interface.

Key Features:

·      100 mW to 20W range

·      19 mm diameter active area

·      Beam position measurement

·      Compact OEM sensor

·      Spectrally flat broadband coating

·      0.25 to 10.6 µm spectral range

·      Conductively cooled

·      Fiber adapters available

·      Direct USB interface

·      ISO 17025 accredited

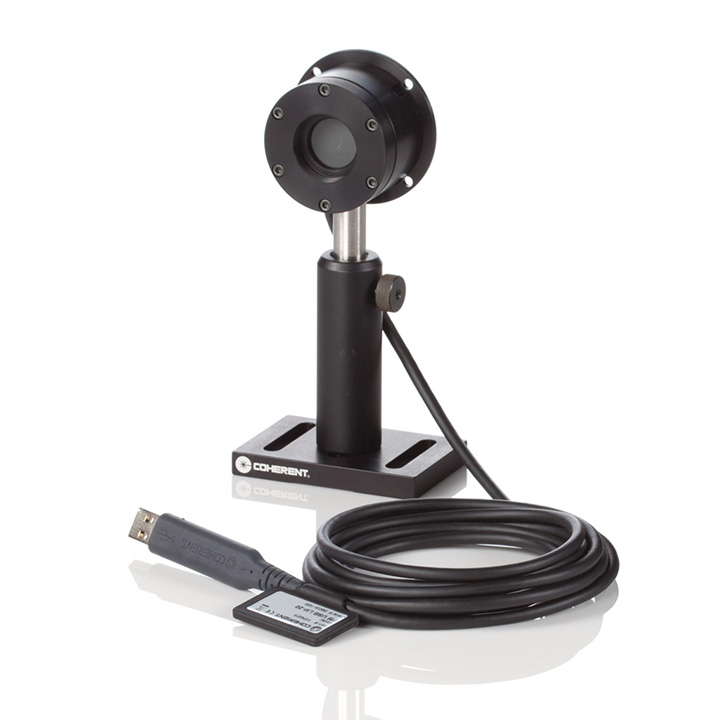

This PowerMax-USB LM-20 sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098456) is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).
