PM200F-50

PM200F-50

SKU 1098472
UOM Each

1W to 200W power sensor, 0.25 to 11 µm spectral range, 50 mm diameter active area.


Price $2,385.00 USD


Details

Fan-cooled thermopile sensor for measuring pulsed & CW lasers between 1W and 200W.



Key Features:

·      1W to 200W range

·      50 mm diameter active area

·      Spectrally flat broadband coating

·      0.25 to 11 µm spectral range

·      Fan-cooled

·      ISO 17025 accredited

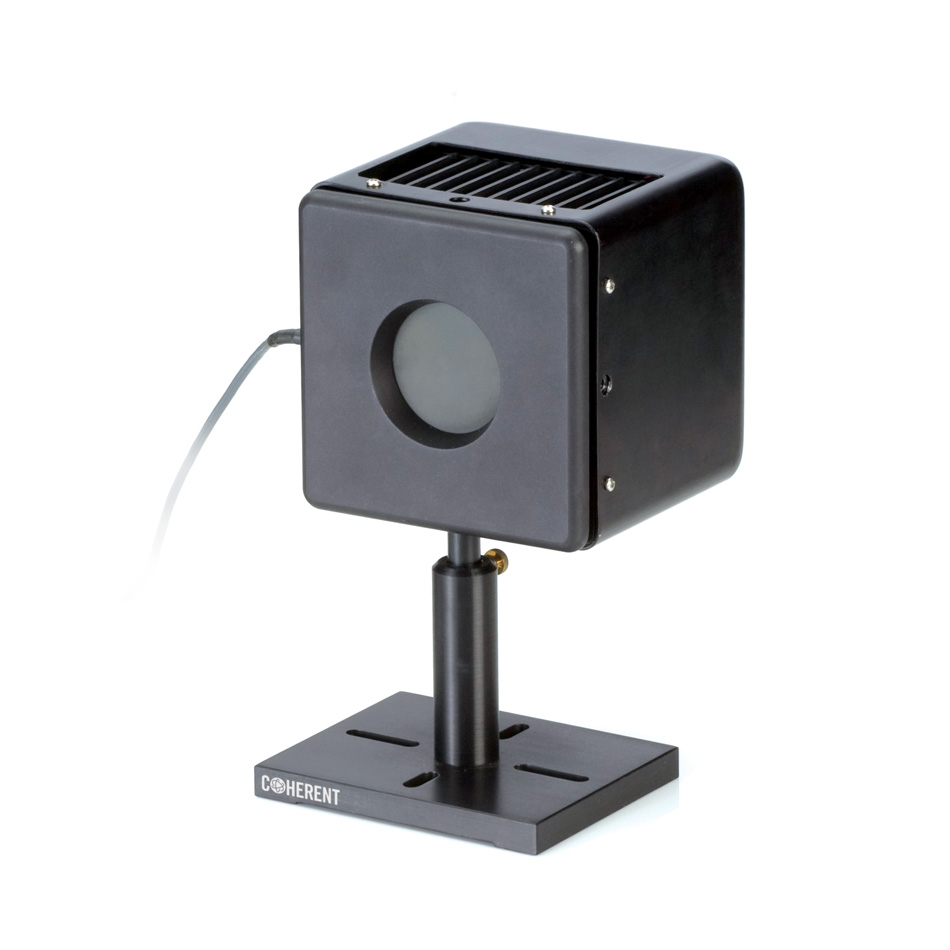

This PM200F-50 sensor is a fan-cooled laser power sensor intended for measuring lasers up to 200W. A compact external power supply provides the 12 VDC required to power the fan.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Specs

General

Cable Type
PM DB-25
Cooling Type
Fan
Power Range
1 W to 200W
Active Area Diameter
50 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
5 mW (w/o fan), 100 mW (with fan)
Maximum Intermittent Power (watts)(<5 minutes)
300
Long-Pulse Joules Range (joules)
1 to 200
Wavelength Range (micrometers)
0.25 to 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
