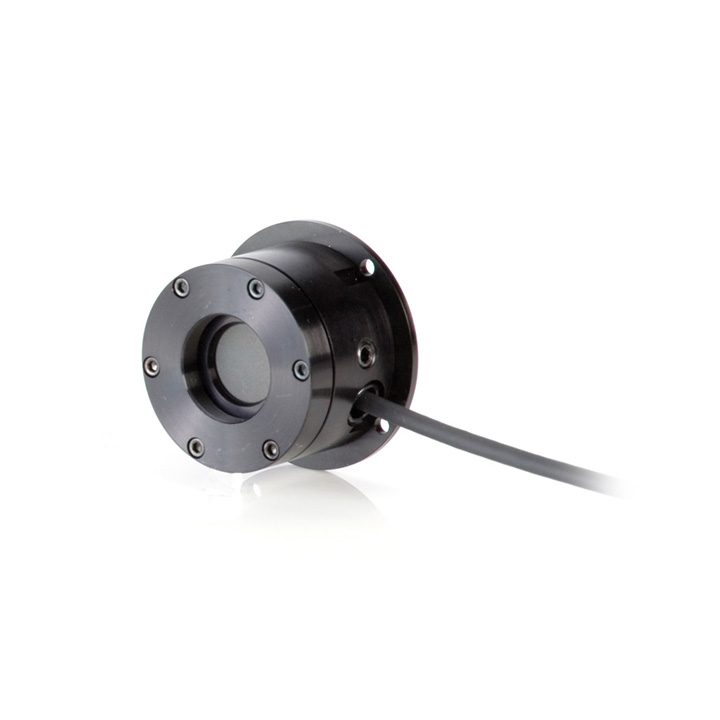

Conductively cooled OEM thermopile for measuring pulsed & CW lasers up to 20W with beam position measurement.



Key Features:

·      100 mW to 20W range

·      19 mm diameter active area

·      Beam position measurement

·      Compact OEM sensor

·      Spectrally flat broadband coating

·      0.25 to 10.6 µm spectral range

·      Conductively cooled

·      Fiber adapters available

·      ISO 17025 accredited

This LM-20 sensor is designed for embedded use inside a laser system and must be mounted on a heat sink to dissipate the heat. It is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

A USB-direct (PN 1174270) model is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

PowerMax-USB LM-20

1174270

$1,790.00 USD

---

Thermal SmartSensor Adapter

1056827

$575.00 USD

---

LabMax-TOP - Laser Power and Energy Meter

1104622

$2,380.00 USD

---

LabMax-TO - Laser Power Meter

1104619

$2,095.00 USD

---

LabMax-Pro SSIM - Laser Power and Energy Meter

1268881

$1,635.00 USD

---

SMA-Type Connector

1098589

$130.00 USD

---

FC/PC Type Connector

1098339

$215.00 USD

---

1.035-40M Adapter Ring

33-9432-000

$85.00 USD

---
