PM2
PM2
SKU
1098329
UOM
Each
10 mW to 2W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
Price
$1,100.00 USD
Details
Compact thermopile sensor for measuring pulsed & CW lasers between 10 mW and 2W.
Key Features:
· 10 mW to 2W range
· 19 mm diameter active area
· Spectrally flat broadband coating
· 0.25 to 11 µm spectral range
· Convective air-cooled
· ISO 17025 accredited

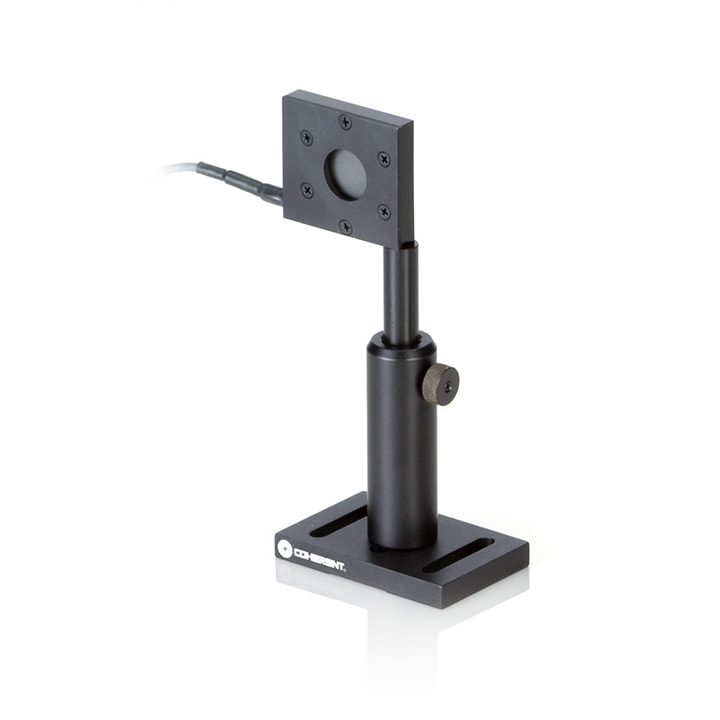

This PM2 sensor is a compact laser power sensor intended for measuring lasers up to 2W.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1174264) is available.
Specs
General
Cable Type
PM DB-25
Cooling Type
Air
Power Range
10 mW to 2W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.2
Maximum Intermittent Power (watts)(<5 minutes)
5
Long-Pulse Joules Range (joules)
0.5 to 2
Wavelength Range (micrometers)
0.25 - 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
