PM30
PM30
SKU
1098314
UOM
Each
100 mW to 30W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
Price
$1,330.00 USD
Details
Thermopile sensor for measuring pulsed & CW lasers between 100 mW and 30W.
Key Features:
· 100 mW to 30W range
· 19 mm diameter active area
· Spectrally flat broadband coating
· 0.25 to 11 µm spectral range
· Convective air-cooled
· ISO 17025 accredited

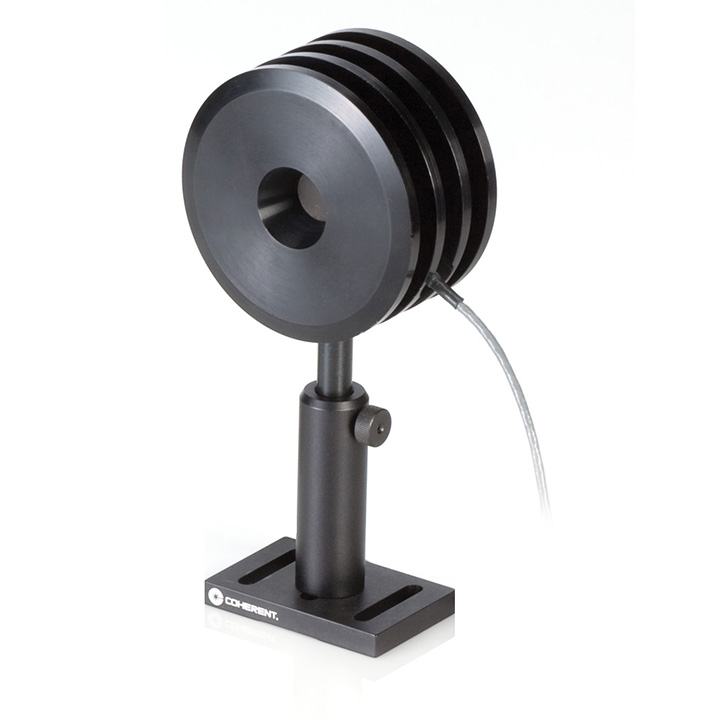

This PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1174257) is available.
Specs
General
Cable Type
PM DB-25
Cooling Type
Air
Power Range
100 mW to 30W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.5
Maximum Intermittent Power (watts)(<5 minutes)
50
Long-Pulse Joules Range (joules)
0.5 to 50
Wavelength Range (micrometers)
0.25 - 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
