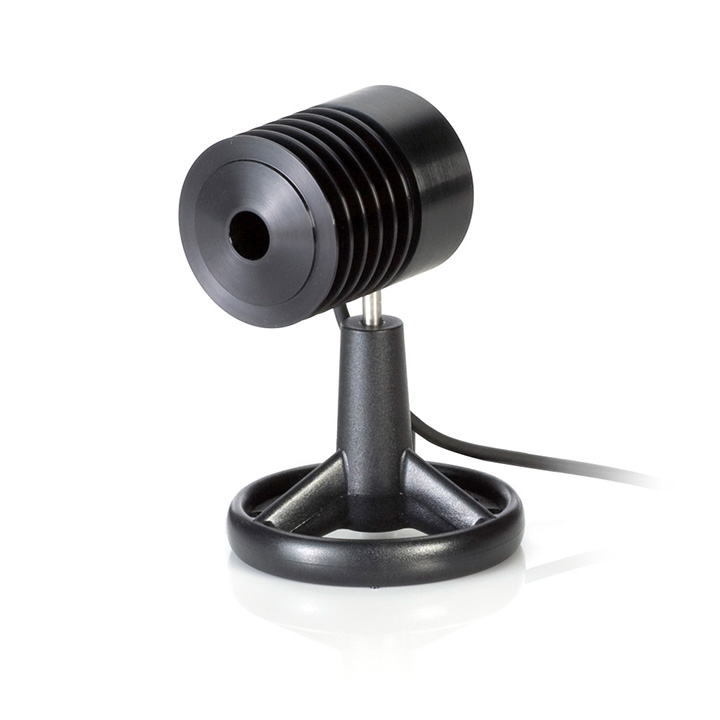

LM-10

LM-10

SKU 1098304
UOM Each

10 mW to 10W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 16 mm diameter active area.

Price $1,235.00 USD

Details

Convectively cooled thermopile for measuring pulsed & CW lasers up to 10W with beam position measurement.

Key Features:

·      10 mW to 10W range

·      16 mm diameter active area

·      Beam position measurement

·      Spectrally flat broadband coating

·      0.25 to 10.6 µm spectral range

·      Convective air-cooled

·      Fiber adapters available

·      ISO 17025 accredited

This LM-10 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

USB-direct (PN 1168340) and RS232-direct (PN 1168341) models are available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Specs

General

Cable Type
LM DB-25
Cooling Type
Air
Power Range
10 mW to 10W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.4
Maximum Intermittent Power (watts)(<5 minutes)
12
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
1.8
