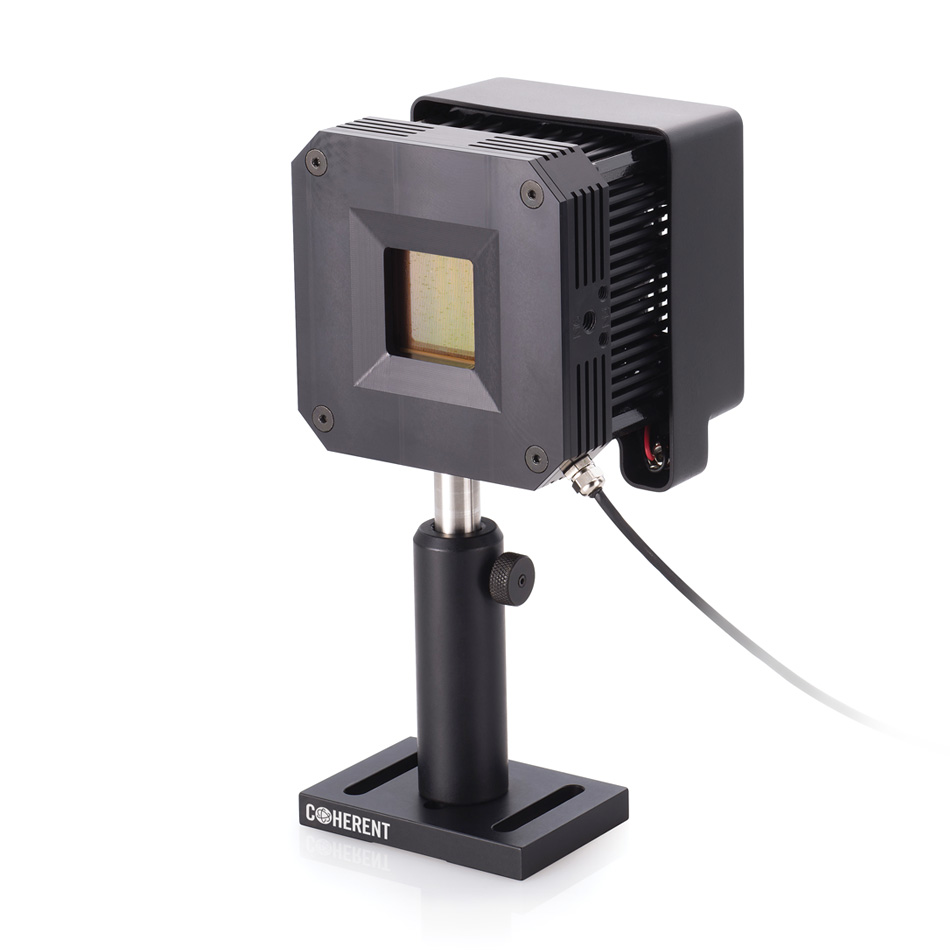

PowerMax-Pro USB 150 BB -- Fast Power Sensor
PowerMax-Pro USB 150 BB -- Fast Power Sensor
SKU
1342379
UOM
Each
USB-enabled, 200 mW to 150W fast power sensor, water-cooled, 0.4 to 11 µm spectral range, 30x30 mm active area.
Price
$3,790.00 USD
Details
Fast, thin-film transverse thermoelectric, water-cooled power sensor with flat broadband coating for measuring lasers between 200 mW and 150W. Direct USB interface.
Key Features:
- 100 mW to 150W range
- Fast thin-film detector
- 50 µsec rise time
- 30x30 mm active area
- Spectrally flat broadband coating
- 4 to 11 µm spectral range
- Water-cooled
- Direct USB interface
- ISO 17025 accredited
This PowerMax-Pro USB 150 BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model utilizes a flat, broadband coating and is intended for measuring lasers up to 150W.
The sensor is terminated in a USB cable for directly interfacing with a PC. A DB25 model (PN 1323849) is available.
Specs
General
Cable Type
USB
Cooling Type
Water/Air
Active Area Size
30 x 30 mm
Detector Coating
BB
Power Range for Continuous Usage Air Cooled
200 mW to 17W
Power Range for Continuous Usage Water-cooled
N/A
Wavelength Range
400 nm to 11 µm
Max Peak Power (for modulated lasers)
200W (> 1 µsec pulses)
Maximum Intermittent Power (watts) (air-cooled <5 minutes)
65
Noise Equivalent Power (milliwatts) Standard Mode
4
Noise Equivalent Power (milliwatts) High Speed Mode
8
Noise Equivalent Power (milliwatts) Snapshot Mode
16
Maximum Power Density (kilowatts per square centimeter)
0.2 (at 150W)
Max. Peak Power Density (kilowatts per square centimeter)
14
Rise Time (microseconds)
≤50
Minimum Beam Size (millimeters)
2.0 (1.0 mm - up to 3% error)
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±5
Spectral Compensation Accuracy (%)
±3
Calibration Wavelength (nanometers)
801
Cable Length (meters)
4.2m (13.8 ft.)
Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)
±5
Max. Energy Density
33 (10 ns; 1064 nm)
