Fast, thin-film transverse thermoelectric, water-cooled power sensor for measuring lasers between 200 mW and 150W. This “nano” model is designed for nanosecond, picosecond, and femtosecond lasers up to 150W. Direct RS232 interface.

Key Features:

• 200 mW to 150W range
• Fast thin-film detector
• 350 µsec rise time
• 30x30 mm active area
• 400 nm to 1100 nm; 9 µm to 11 µm spectral range
• Water-cooled
• Direct RS232 interface
• ISO 17025 accredited

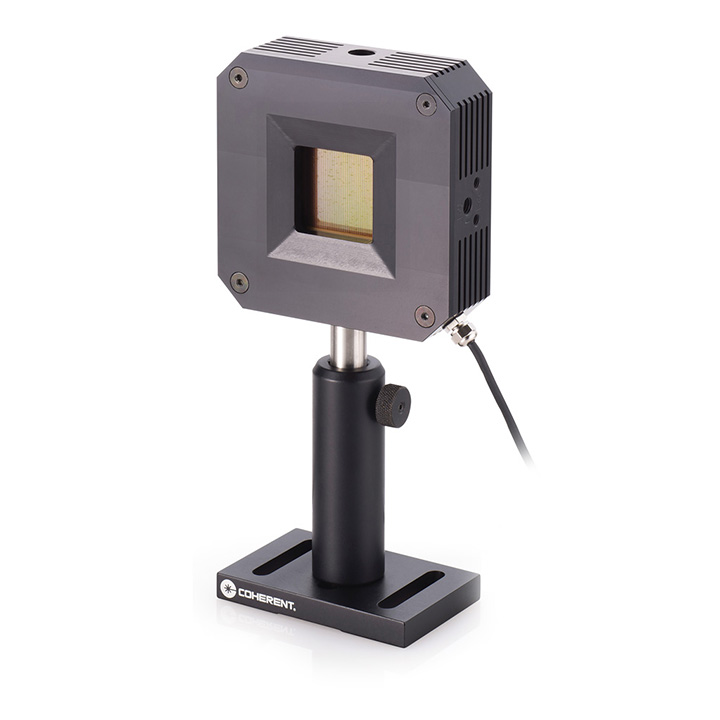

This PowerMax-Pro RS 150 HD ‘nano’ sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model has a reduced bandwidth intended for measuring nanosecond, picosecond, and femtosecond lasers up to 150W.

The sensor is terminated in an RS232 cable for directly interfacing with a PC or industrial controller. A DB25 model (PN 1325549) is available.
