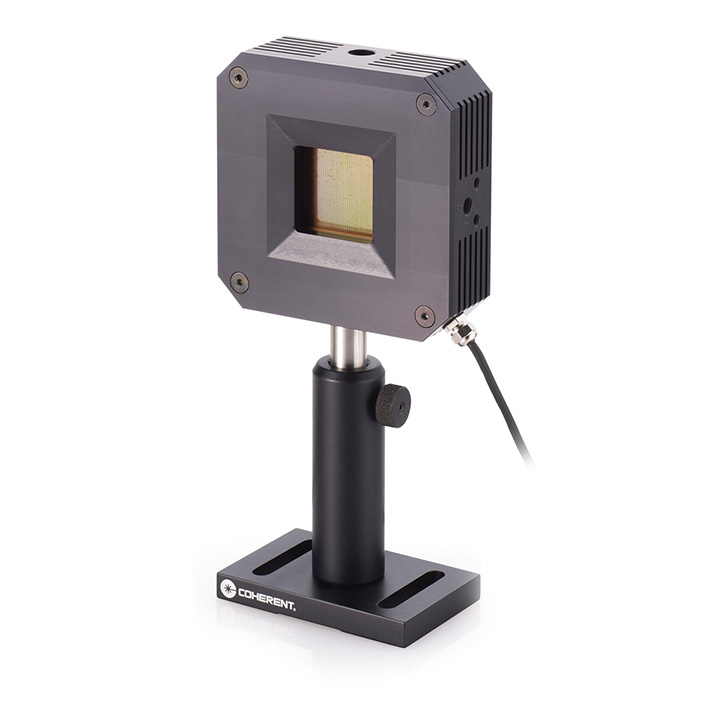

PowerMax-Pro 150 HD ‘nano’ -- Fast Power Sensor
PowerMax-Pro 150 HD ‘nano’ -- Fast Power Sensor
100 mW to 150W fast power sensor, water-cooled, 400 nm to 1100 nm; 9 µm to 11 µm spectral range, 30x30 mm active area.
Details
Fast, thin-film transverse thermoelectric, water-cooled power sensor for measuring lasers between 100 mW and 150W. This “nano” model is designed for nanosecond, picosecond, and femtosecond lasers up to 150W.
Key Features:
- 100 mW to 150W range
- Fast thin-film detector
- 350 µsec rise time
- 30x30 mm active area
- 400 nm to 1100 nm; 9 µm to 11 µm spectral range
- Water-cooled
- ISO 17025 accredited
This PowerMax-Pro 150 HD ‘nano’ sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model has a reduced bandwidth intended for measuring nanosecond, picosecond, and femtosecond lasers up to 150W.
The sensor is terminated in a SmartProbe DB25 cable and requires the LabMax-Pro SSIM meter (PN 1268881) to take advantage of its high-speed features. A USB-direct model (PN 1330510) is available.
Specs
General
