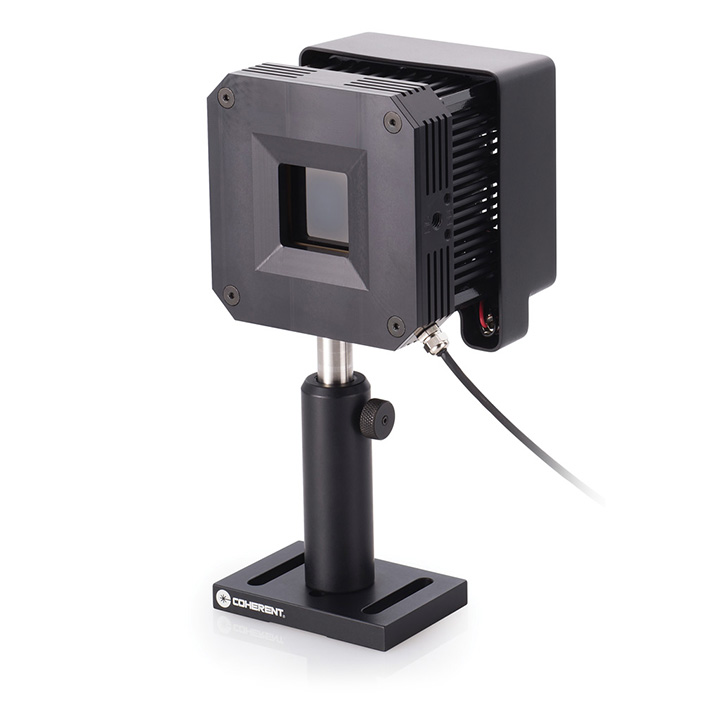

PowerMax-Pro 150F BB -- Fast Power Sensor

PowerMax-Pro 150F BB -- Fast Power Sensor

SKU 1323848
UOM Each

100 mW to 150W fast power sensor, fan-cooled, 0.4 to 11 µm spectral range, 30x30 mm active area.

Price $3,000.00 USD

Details

Fast, thin-film transverse thermoelectric, fan-cooled power sensor with flat broadband coating for measuring lasers between 100 mW and 150W.



Key Features:

  • 100 mW to 150W range
  • Fast thin-film detector
  • 50 µsec rise time
  • 30x30 mm active area
  • Spectrally flat broadband coating
  • 4 to 11 µm spectral range
  • Fan-cooled
  • ISO 17025 accredited

This PowerMax-Pro 150F BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds.  This model utilizes a flat, broadband coating and is intended for measuring lasers up to 150W. The 150F model designator represents a fan-cooled model.

The sensor is terminated in a SmartProbe DB25 cable and requires the LabMax-Pro SSIM meter (PN 1268881) to take advantage of its high-speed features.  A USB-direct model (PN 1342380) is available.

Resources

Datasheets
View
Drawings
View

Specs

General

Cable Type
DB-25
Cooling Type
Fan
Active Area Size
30 x 30 mm
Detector Coating
BB
Power Range for Continuous Usage Air Cooled
100 mW to 150W
Power Range for Continuous Usage Water-cooled
Not applicable
Wavelength Range
400 nm to 11 µm
Max Peak Power (for modulated lasers)
170W (> 1 µsec pulses)
Maximum Intermittent Power (watts) (air-cooled <5 minutes)
150
Noise Equivalent Power (milliwatts) Standard Mode
1
Noise Equivalent Power (milliwatts) High Speed Mode
4
Noise Equivalent Power (milliwatts) Snapshot Mode
9
Maximum Power Density (kilowatts per square centimeter)
0.2 (at 150W)
Max. Peak Power Density (kilowatts per square centimeter)
14
Rise Time (microseconds)
≤50
Minimum Beam Size (millimeters)
2.0 (1.0 mm - up to 3% error)
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±3
Spectral Compensation Accuracy (%)
±3
Calibration Wavelength (nanometers)
801
Cable Length (meters)
2.5 (8.2 ft.)
Max. Energy Density
33 (10 ns; 1064 nm)
Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)
±5
