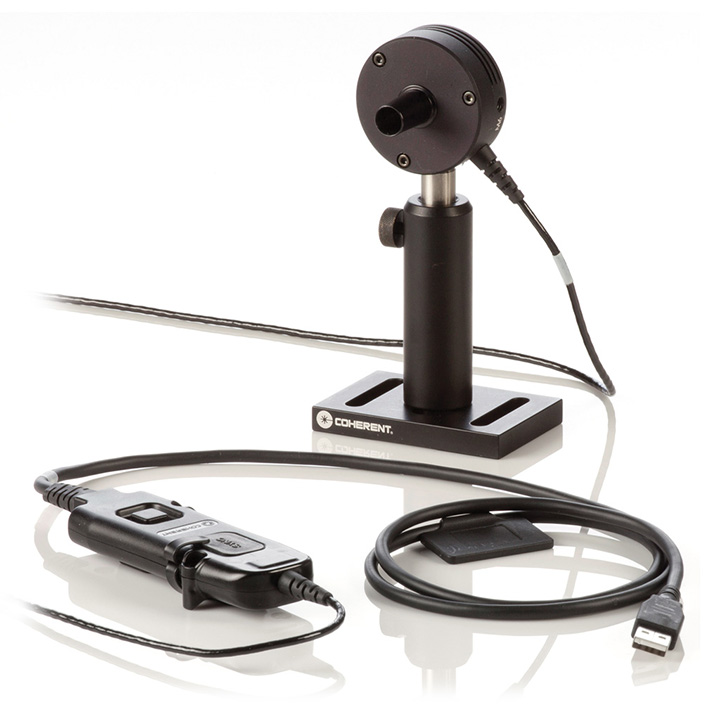

EnergyMax-USB J-10Ge-LE Energy Sensor
EnergyMax-USB J-10Ge-LE Energy Sensor
SKU
1286950
UOM
Each
USB-enabled, 1 nJ to 600 nJ pulse energy sensor, rep. rate to 10000 pps, 800 to 1700 nm spectra range, 10 mm diameter active area.
Price
$3,715.00 USD
Details
Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 1 nJ to 600 nJ at up to 10000 pps.
Key Features:
- 800 to 1700 nm spectral range
- 10 mm diameter active area
- 1 nJ to 600 nJ energy range
- 10000 pps repetition rate operation
- ISO 17025 accredited
The EnergyMax-USB J-10Ge-LE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1140408) is available.
Specs
General
Cable Type
USB
Active Area Diameter
10 mm
Energy Range
1 nJ to 600 nJ (at 1064 nm)
Wavelength Range
800 nm to 1700 nm
Detector
Germanium
Noise Equivalent Energy
<100 (at 1064 nm)
Maximum Pyroelectric Rep. Rate (pulses per second)
10000
Wavelength Range (micrometers)
.800 to 1.700
Maximum Average Power (watts)
0.06
Maximum Pulse Width (microseconds)
1
Diffuser
ND2
Calibration Uncertainty (%)(k=2)
±3
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
