USB-enabled, 90 µJ to 100 mJ pulse energy sensor, rep. rate up to 500 pps, 0.19 to 2.1 µm spectral range, 25mm diameter active area.
Pyroelectric energy sensor with MaxUV coating for measuring laser pulses from 90 µJ to 100 mJ at up to 500 pps. Direct USB interface.
This J-25MUV-248 energy sensor incorporates the MaxUV coating and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 193 nm and includes spectral compensation from 0.19 to 2.1 µm.

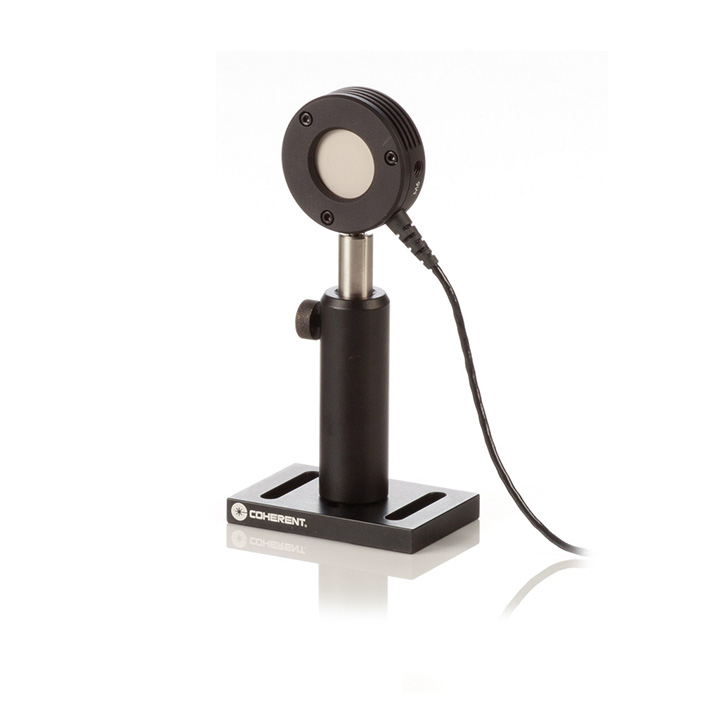

The EnergyMax-USB J-25MUV-193 energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110741) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
