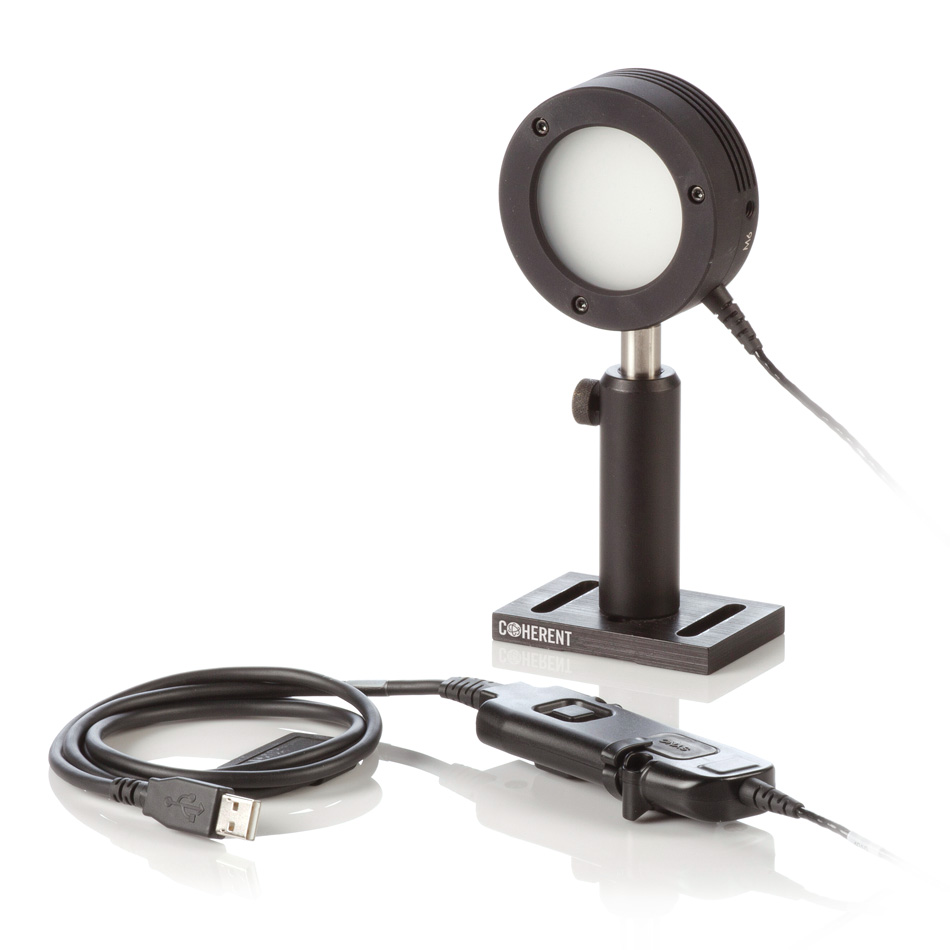

EnergyMax-USB J-50MB-YAG-1528 Energy Sensor
EnergyMax-USB J-50MB-YAG-1528 Energy Sensor
USB-enabled, 2.4 mJ to 3J pulse energy sensor, rep. rate up to 300 pps, 0.266 to 2.1 µm spectral range, 35 mm diameter max beam size.
Details
Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1.5 mJ to 3J at up to 300 pps. Direct USB interface.
Key Features:
- 266 nm to 2.1 µm spectral range
- 50 mm diameter active area
- 2.4 mJ to 3J energy sensor
- 300 pps repetition rate operation
- Direct USB interface
- ISO 17025 accredited
The J-50MB-YAG-1528 energy sensor is a higher repetition rate model than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.
The EnergyMax-USB J-50MB-YAG-1528 energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1144701) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
