RS-enabled, 400 µJ - 1J pulse energy sensor, rep. rate up to 10000 pps, metallic coating with 0.19 to 2.1 µm spectral range, 50 mm diameter active area.
Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 400 µJ - 1J at up to 10000 pps. Direct RS232 interface.

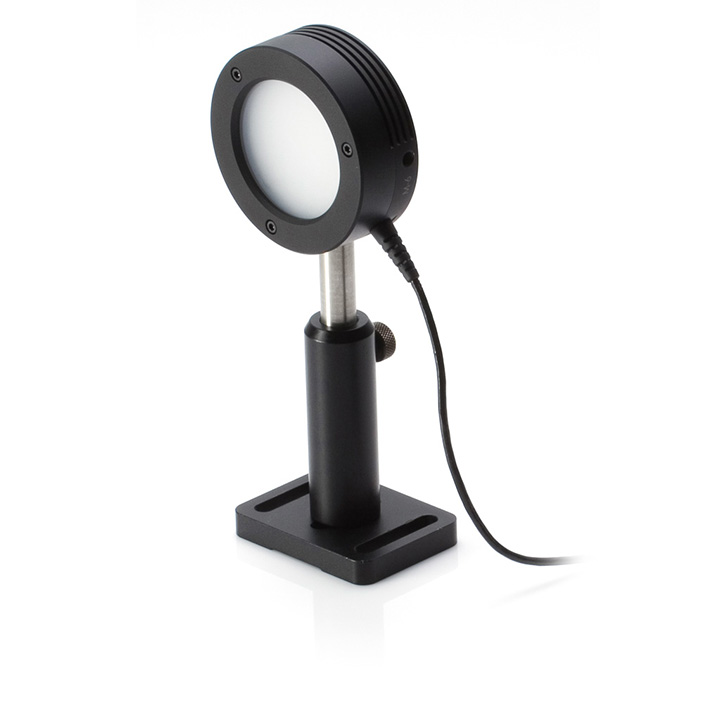

The EnergyMax-RS J-50MT-10KHZ energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110574) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
