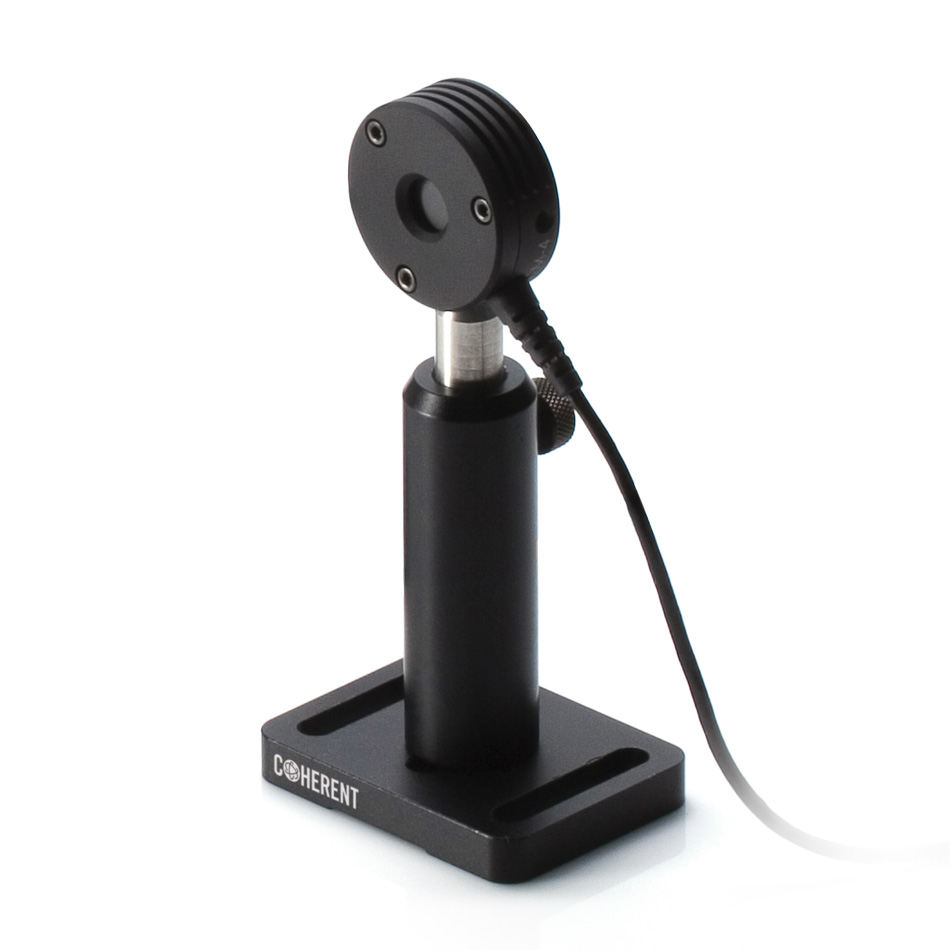

EnergyMax-RS J-10MB-HE Energy Sensor
EnergyMax-RS J-10MB-HE Energy Sensor
SKU
1191429
UOM
Each
RS232-enabled, 12 µJ to 20 mJ pulse energy sensor, rep. rate up to 1000 pps, MaxBlack coating with 0.19 to 12 µm spectral range, 10 mm diameter active area.
Price
$2,625.00 USD
Details
Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 12 µJ to 20mJ at up to 1000 pps. Direct RS232 interface.
Key Features:
- 190 nm to 12 µm spectral range
- 10 mm diameter active area
- 12 µJ to 20mJ energy range
- 1000 pps repetition rate operation
- Direct RS232 interface
- ISO 17025 accredited
The EnergyMax-RS J-10MB-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110843) is available.
Specs
General
Cable Type
RS232
Active Area Diameter
10 mm
Detector Coating
MaxBlack
Energy Range
12 µJ to 20 mJ
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<1.2 µJ
Wavelength Range (micrometers)
0.19 to 12
Maximum Average Power (watts)
4
Maximum Pulse Width (microseconds)
17
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
