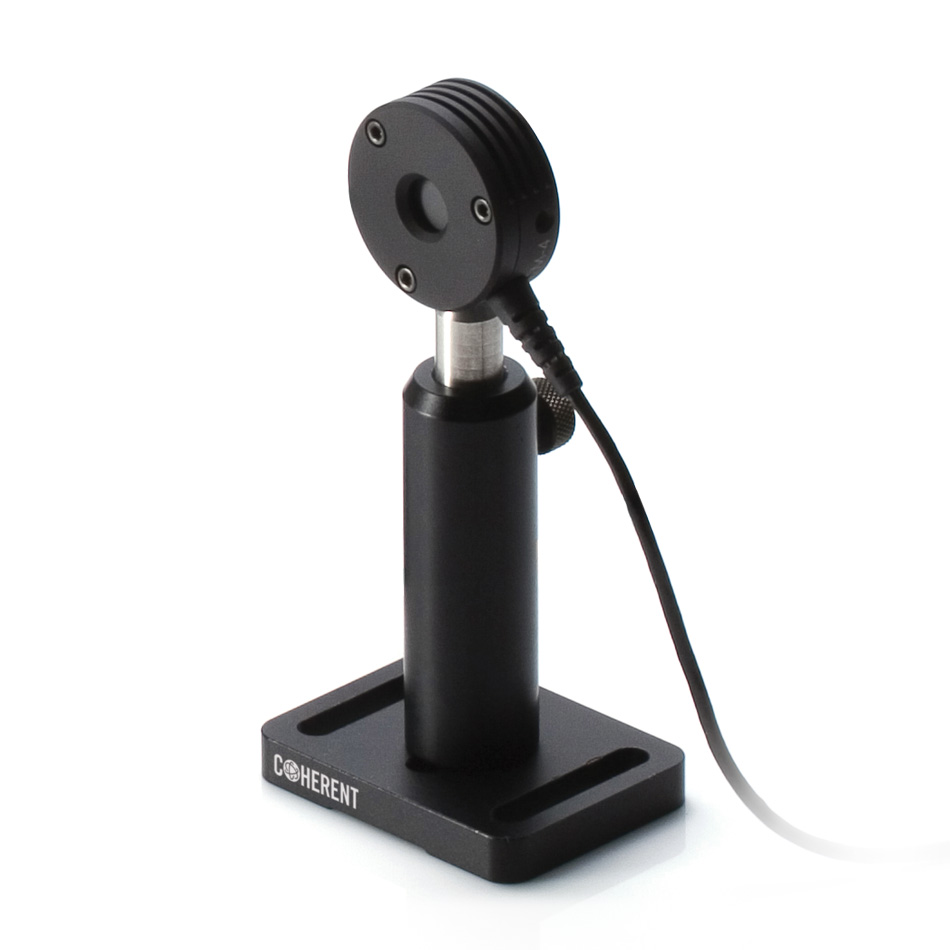

EnergyMax-RS J-10MB-LE Energy Sensor
EnergyMax-RS J-10MB-LE Energy Sensor
SKU
1191428
UOM
Each
RS232-enabled, 10mm diameter pulse energy sensor with MaxBlack coating for measuring 500nJ-600µJ up to 1 kHz
Price
$2,625.00 USD
Details
Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 500nJ-600µJ at up to 1000 pps. Direct RS232 interface.
Key Features:
- 190 nm to 12 µm spectral range
- 10 mm diameter active area
- 500nJ-600µJ energy range
- 1000 pps repetition rate operation
- Direct RS232 interface
- ISO 17025 accredited
The EnergyMax-RS J-10MB-LE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110855) is available.
Specs
General
Cable Type
RS232
Active Area Diameter
10 mm
Detector Coating
MaxBlack
Energy Range
500 nJ to 600 µJ
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<50 nJ
Maximum Pyroelectric Rep. Rate (pulses per second)
1000
Wavelength Range (micrometers)
0.19 to 12
Maximum Average Power (watts)
4
Maximum Pulse Width (microseconds)
17
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
--
