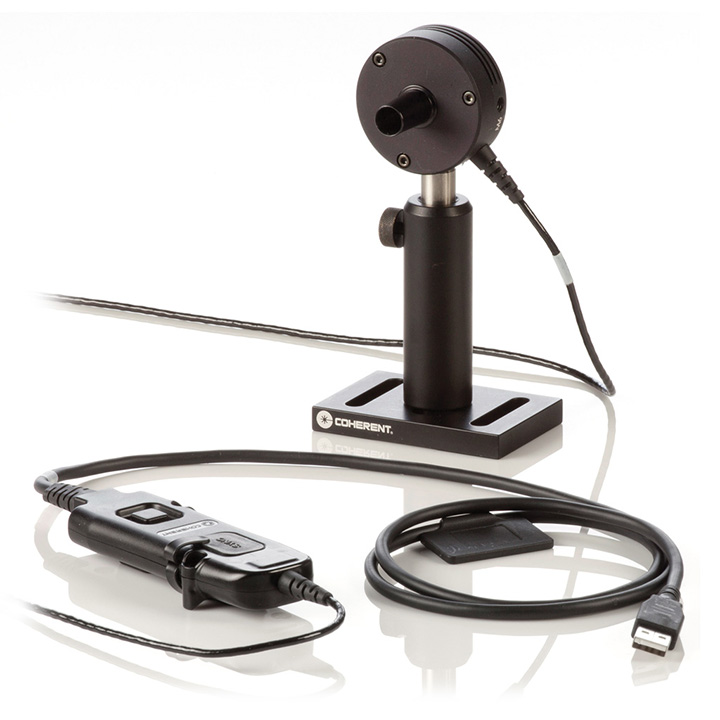

EnergyMax-RS J-10SI-HE Energy Sensor
EnergyMax-RS J-10SI-HE Energy Sensor
SKU
1191427
UOM
Each
RS232-enabled, 750 pJ to 775 nJ pulse energy sensor, rep. rate to 10000 pps, 325 to 900 nm spectra range, 10 mm diameter active area.
Price
$3,345.00 USD
Details
Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 750 pJ to 775 nJ at up to 10000 pps. Direct RS232 interface
Key Features:
- 325 to 900 nm spectral range
- 10 mm diameter active area
- 750 pJ to 775 nJ energy range
- 10000 pps repetition rate operation
- Direct RS232 interface
- ISO 17025 accredited
The EnergyMax-RS J-10Si-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1150146) is available.
Specs
General
Cable Type
RS232
Active Area Diameter
10 mm
Energy Range
750 pJ to 775 nJ (at 532 nm)
Wavelength Range
325 nm to 900 nm
Detector
Silicon
Noise Equivalent Energy
<75 pJ (at 532 nm)
Maximum Pyroelectric Rep. Rate (pulses per second)
10000
Wavelength Range (micrometers)
.325 to .900
Maximum Average Power (watts)
0.06
Maximum Pulse Width (microseconds)
1
Diffuser
ND2
Calibration Uncertainty (%)(k=2)
±3
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
