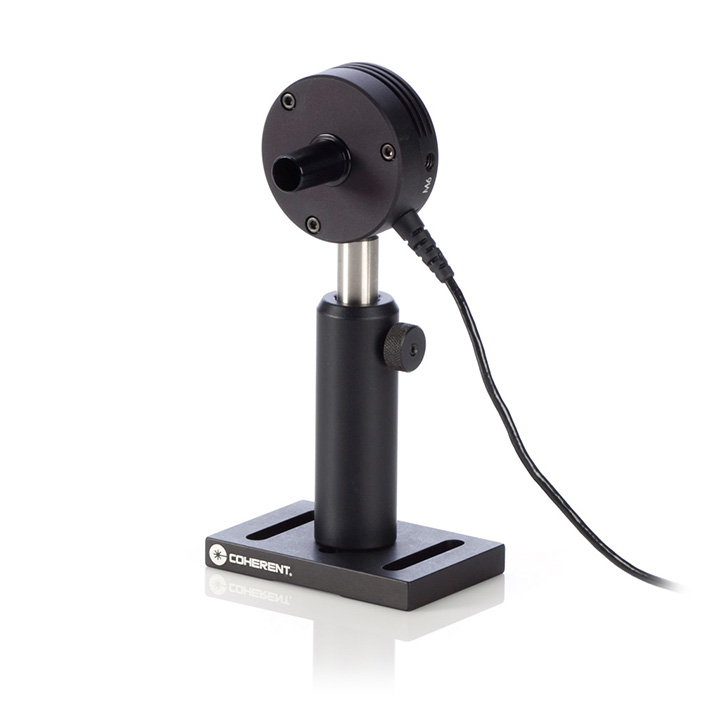

J-10Ge-LE Quantum Energy Sensor
J-10Ge-LE Quantum Energy Sensor
SKU
1140408
UOM
Each
200 pJ to 600 nJ pulse energy sensor, rep. rate to 10000 pps, 800 to 1700 nm spectra range, 10 mm diameter active area.
Price
$2,570.00 USD
Details
Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 200 pJ to 600 nJ at up to 10000 pps.
Key Features:
- 800 to 1700 nm spectral range
- 10 mm diameter active area
- 200 pJ to 600 nJ energy range
- 10000 pps repetition rate operation
- ISO 17025 accredited
The J-10Ge-LE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.
A USB-direct (PN 1286950) model is available.
Resources
Drawings
Specs
General
Cable Type
J DB-25
Active Area Diameter
10 mm
Energy Range
200 pJ - 600 nJ
Wavelength Range
800 nm to 1700 nm
Detector
Germanium
Noise Equivalent Energy
<8 pJ (at 1064 nm)
Maximum Pyroelectric Rep. Rate (pulses per second)
10000
Maximum Average Power (watts)
15
Maximum Pulse Width (microseconds)
1
Diffuser
No
Calibration Uncertainty (%)(k=2)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
