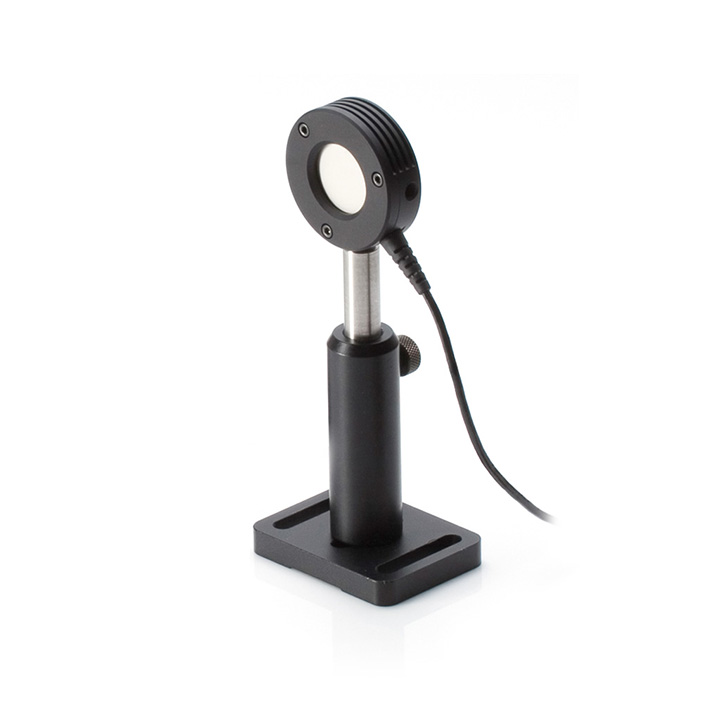

J-25MT-10KHZ Energy Sensor

J-25MT-10KHZ Energy Sensor

SKU 1110747
UOM Each

50 µJ - 100 mJ pulse energy sensor, rep. rate up to 10000 pps, metallic coating with 0.19 to 2.1 µm spectral range, 25 mm diameter active area.

Price $1,910.00 USD

Details

Pyroelectric energy sensor with diffuse m

etallic coating for measuring laser pulses from 50 µJ – 100 mJ at up to 10000 pps.

Key Features:

  • 190 nm to 2.1 µm spectral range
  • 25 mm diameter active area
  • 50 µJ - 100 mJ energy range
  • 10000 pps repetition rate operation
  • ISO 17025 accredited

The J-25MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.

A USB-direct (PN 1191446) model is available.

A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Resources

Datasheets
View
Drawings
View

Specs

General

Cable Type
J DB-25
Active Area Diameter
25 mm
Detector Coating
Diffuse Metallic
Energy Range
50 µJ - 100 mJ
Wavelength Range
190 nm to 2100 nm
Noise Equivalent Energy
<2 µJ
Maximum Pyroelectric Rep. Rate (pulses per second)
10000
Maximum Average Power (watts)
10
Maximum Pulse Width (microseconds)
1.7
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5

Accessories

Small Heat Sink

1123430

$135.00 USD

Medium Heat Sink

1123431

$160.00 USD

Pyroelectric Test Slide - Diffuse Metallic Coating

1171292

$75.00 USD
