S-1597: FieldMaxII-TOP with J-50MB-YAG system kit
S-1597: FieldMaxII-TOP with J-50MB-YAG system kit
SKU
1366204
UOM
Each

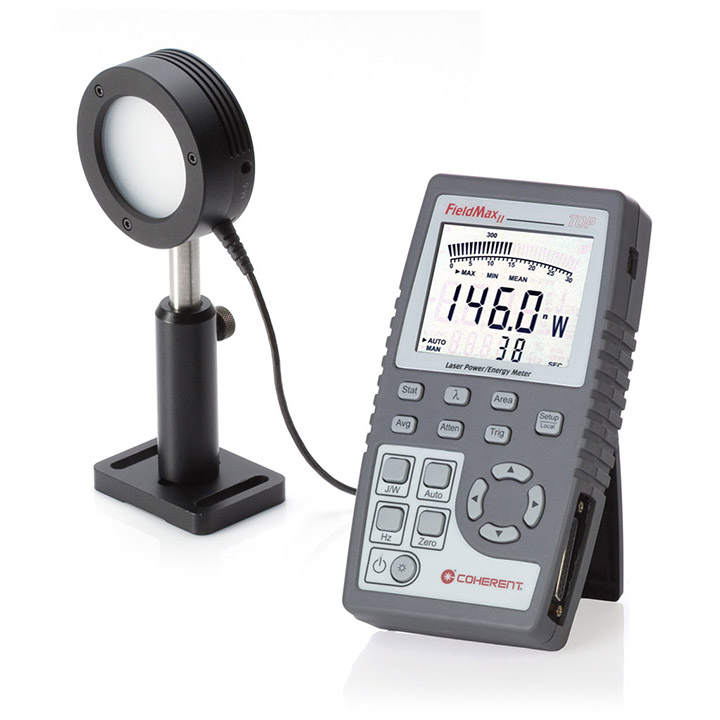

Bundled kit comprised of a FieldMaxII-TOP laser power and energy meter and a J-50MB-YAG energy sensor.
Price
$3,185.00 USD
Details
Bundled kit comprised of a FieldMaxII-TOP laser power and energy meter and a J-50MB-YAG energy sensor.
Kit Contents:
- FieldMaxII-TOP Power/Energy Meter (PN 1098580): Laser power and energy meter, digital reading, statistics, USB PC interface, analog output, 300 pps pulse repetition rate.
- J-50MB-YAG Energy Sensor (PN 1110744): 1.5 mJ - 3J pulse energy sensor, rep. rate up to 50 pps, 0.19 to 2.1 µm spectral range, 35 mm diameter max beam size.
Specs
General
Cooling Type
Air
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
1.5 mJ - 3 J
Noise Equivalent Energy
<50 µJ
Maximum Pyroelectric Rep. Rate (pulses per second)
50
Wavelength Range (micrometers)
0.266-2.1
Maximum Pulse Width (microseconds)
340
Maximum Energy Density (millijoules per square centimeter)
14000 (at 1064 nm, 10 ns) 2800 (at 532 nm, 10 ns) 750 (at 355 nm, 10 ns) 1000 (at 266 nm, 10 ns)
Window
None
Diffuser
YAG
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5
Sensor Type
Pyroelectric
Max Energy (millijoules)
3000
