S-1551: FieldMaxII-TO & PS19 system kit
S-1551: FieldMaxII-TO & PS19 system kit
SKU
1164233
UOM
Each

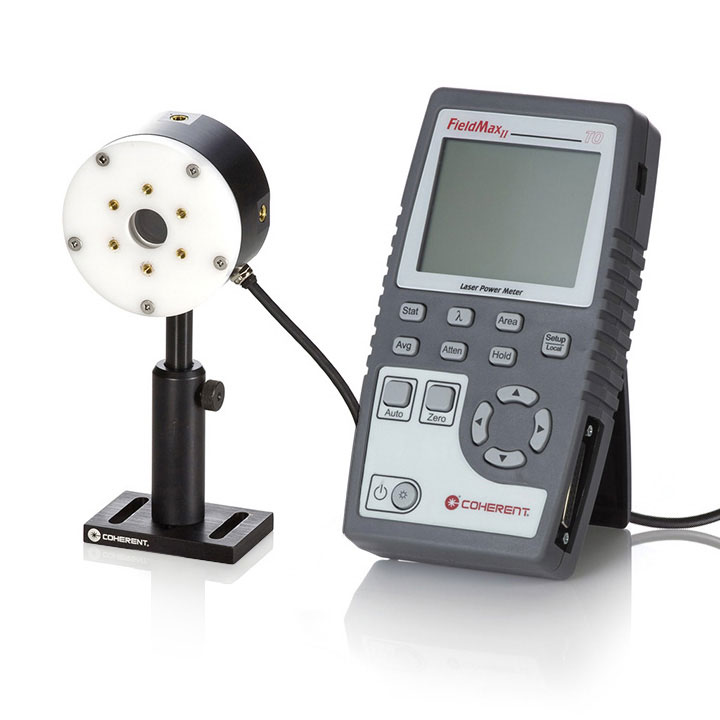

Bundled kit comprised of a FieldMaxII-TO laser power meter and a PS19 low power sensor.
Price
$2,355.00 USD
Details
Bundled kit comprised of a FieldMaxII-TO laser power meter and a PS19 low power sensor.
Kit Contents:
- FieldMaxII-TO Laser Power Meter (PN 1098579): Laser power meter, digital reading, statistics, USB PC interface, analog output.
- PS19 Low Power Sensor (PN 1098413): 100 µW to 1W low power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
Specs
General
Cooling Type
Air
Power Range
100 µW to 1W
Active Area Diameter
19 mm
Detector Coating
Black
Maximum Intermittent Power (watts)(<5 minutes)
3
Wavelength Range (micrometers)
0.3 - 11
Maximum Power Density (kilowatts per square centimeter)
0.5
Maximum Energy Density (millijoules per square centimeter)
50, 10 ns, 1064 nm
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
Sensor Type
Thermopile
