S-1546: FieldMaxII-TO & PM10 system kit
S-1546: FieldMaxII-TO & PM10 system kit
SKU
1159770
UOM
Each

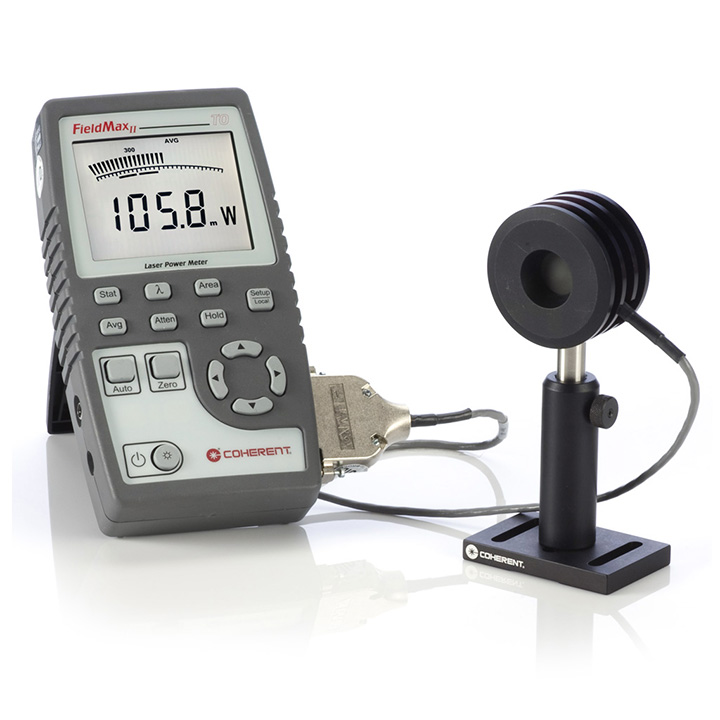

Bundled kit comprised of a FieldMaxII-TO laser power meter and PM10 power sensor.
Price
$1,865.00 USD
Details
Bundled kit comprised of a FieldMaxII-TO laser power meter and PM10 power sensor.
Kit Contents:
- FieldMaxII-TO Laser Power Meter (PN 1098579): Laser power meter, digital reading, statistics, USB PC interface, analog output.
- PM10 Power Sensor (PN 1097901): 10 mW to 10W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
Specs
General
Cooling Type
Air
Power Range
10 mW to 10W
Active Area Diameter
19 mm
Detector Coating
Broadband
Maximum Intermittent Power (watts)(<5 minutes)
30
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 - 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
Sensor Type
Thermopile
