S-1516: FieldMate & OP-2 VIS system kit

S-1516: FieldMate & OP-2 VIS system kit

SKU 1133374
UOM Each

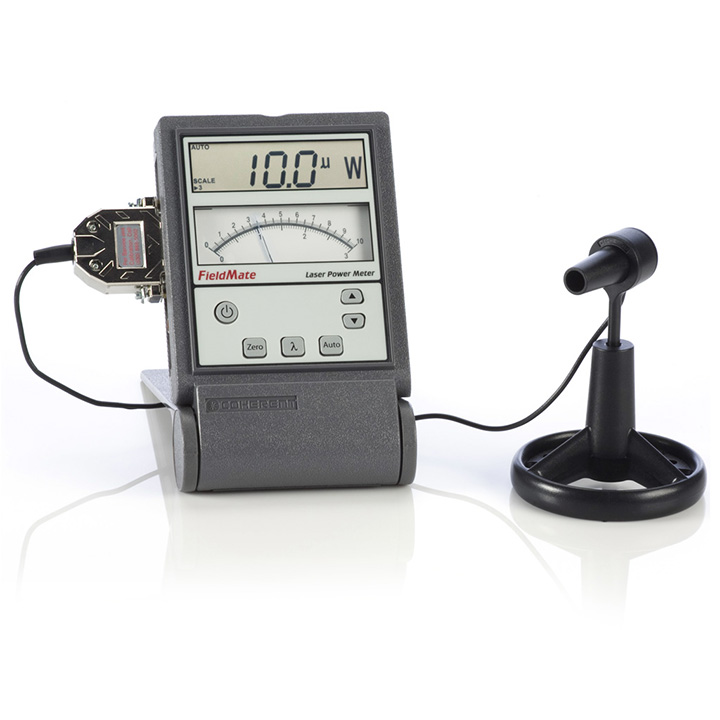

Bundled kit comprised of a FieldMate laser power meter and a OP-2 VIS semiconductor low power sensor.


Price $1,190.00 USD


Details

Bundled kit comprised of a FieldMate laser power meter and a OP-2 VIS semiconductor low power sensor.

Kit Contents:

  • FieldMate Power Meter (PN 1098297): Laser power meter, digital power reading, analog tuning needle, analog output.
  • OP-2 VIS Semiconductor Low Power Sensor (PN 1098313): 10 nW to 30 mW power sensor, silicon optical sensor, 400 to 1100 nm spectral range, 7.9 mm diameter active area.

Specs

General

Cooling Type
Air
Power Range
10 nW to 30 mW
Active Area Diameter
7.9 mm
Detector Coating
Silicon diode
Wavelength Range (micrometers)
0.4 to 1.1
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±12.0 from 440 to 445 nm/±5.0 from 450 to 1064 nm
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
440 to 1064 nm
Cable Length (meters)
1.8
Sensor Type
Semiconductor
