Stingray Laser. 450 nm Wavelength. 50 mW Output Power. Beam Shape: Line with 45° Fan Angle with Extended Beam Focus Type. Power Control is Reverse Analog. Communication is RS232 Enabled. Cable Length is 500 mm, with Flying Leads. Disable 5-second Power-On Delay

Price $1,530.00 USD

Details

StingRay lasers are configurable with a variety of wavelengths and output power. Configure the laser output beam type from a Uniform Laser Line with choices in Fan Angle, an Elliptical Dot beam, or choose a Fiber Ready Stingray. Configure from several power control options, RS-232 option, cables and connectors.

Refer to the Specs Tab for all the details.

This StingRay laser offers:

Laser Wavelength color: Blue, 450 nm
Laser Output Power of 50 mW

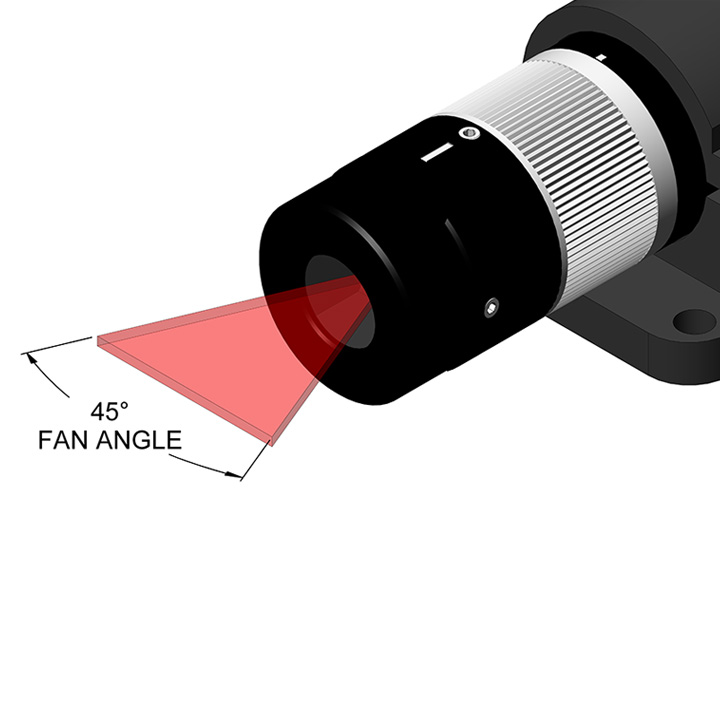

Laser Beam Shape is a Tophat Uniform Line with 45° Fan Angle
Laser Output Power Control is Reverse Analog
The laser line width is user adjustable to control the focus location working distance.

StingRay lasers offer exceptional beam quality and reliability.

Choose Stingray for your demanding Machine Vision and Instrumentation illumination. See the StingRay datasheet for all the configuration options.

Coherent StingRay lasers can have delivery as fast as 2 weeks!

Buy now, or contact Coherent to configure your custom StingRay laser.

Resources

Assembly Guides

View

Assembly Guides

View

Datasheets

View

Specs

General

Wavelength (nanometers)

450

Wavelength Color

Blue

Power (milliwatts)

Beam Type

Line with 45° Fan Angle

Beam Shape

Line

M² (Beam Quality at 90/10 Clip Levels) Maximum

1.5

Beam Diameter at 1/e² (millimeters)

Beam Divergence (milliradians, full-angle) Maximum

0.5

Line Fan Angle

with 45° Fan Angle

RMS Noise (%) (20 hertz to 20 megahertz) Maximum

0.5

Peak-to-Peak Noise (%, 20 hertz to 20 kilohertz) Maximum

Long-term Power Stability (%, 8 hours, ±3°C) Maximum

Pointing Stability Over Temperature (microradians/°C) Maximum

Communication

RS-232

Power Control

Reverse Analog

Analog Modulation Bandwidth (kilohertz) Maximum

500

Analog Modulation Rise Time (nanoseconds) Maximum

1000

Analog Modulation Fall Time (nanoseconds) Maximum

1000

Analog Modulation OFF Power (nanowatts) Maximum

Beam Angle Tolerance from Exit (milliradians) Maximum

Warm-up Time (minutes, from cold start) Maximum

Ambient Temperature, Operating Condition (°C) Minimum

-10

Ambient Temperature, Operating Condition (°C) Maximum

Storage Temperature (°C) Minimum

-20

Storage Temperature (°C) Maximum

Power Consumption (watts) Maximum

Operating Voltage (Volts DC)

ESD Protection

EN61326-1, 8 kV Air Discharge, 4 kV Contact Discharge

Spatial Mode

TEM00

Wavelength Minimum (nanometers)

440

Wavelength Maximum (nanometers)

460

Dimension, Height (millimeters)

19.1

Weight (kilograms)

0.07

Option

Disable 5-second Power-On Delay

Laser Line Module, Top Hat 450nm, 50mW. Line with 45° Fan Angle. Extended Focus

Laser Line Module, Top Hat 450nm, 50mW. Line with 45° Fan Angle. Extended Focus
