Beam Delivery Components
<p style="text-align: center;">Consistent laser processing demands accurate transfer of source output to the work surface, and Coherent beam delivery components achieve that with superior optical performance and exceptional mechanical stability, even over long periods of use.</p>
Collimating Unit ac QD, d50, f160, 1030-1090nm
SKU: 112711X01
Air-cooled collimating unit for laser powers up to 5 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 160 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit ac QD, d50, f200, 1030-1090nm
SKU: 112712X01
Air-cooled collimating unit for laser powers up to 5 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 200 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit ac QD, d50, f250, 1030-1090nm
SKU: 112713X01
Air-cooled collimating unit for laser powers up to 5 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 250 mm and clear aperture 48 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc Q5, d25, f50, 1030-1090nm
SKU: 2-9638X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 50 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc Q5, d25, f60, 1030-1090nm
SKU: 2-9650X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 60 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d25, f70, 1030-1090nm
SKU: 2-9659X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 70 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d25, f85, 1030-1090nm
SKU: 2-9660X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 85 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d25, f100, 1030-1090nm
SKU: 2-9661X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 100 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc Q5, d25, f70, 1030-1090nm
SKU: 2-9662X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 70 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc Q5, d25, f85, 1030-1090nm
SKU: 2-9663X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 85 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc Q5, d25, f100, 1030-1090nm
SKU: 2-9664X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 100 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d25, f50, 1030-1090nm
SKU: 2-9678X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 50 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
Collimating Unit wc QD, d25, f60, 1030-1090nm
SKU: 2-9679X01
Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Focal length 60 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.
QB Fiber connector mount, short
SKU: 2-9626X01
Mechanical receiver for QBH (RQB, HLC-8, LC-8, LLK-Q) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. Include a built-in temperature switch. For output side of the fiber optic cable.
SKU: 2-9022X01
Mechanical receiver for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. Include a built-in temperature switch. For output side of the fiber optic cable.
SKU: 2-9027X01
Mechanical receiver for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For input side of the fiber optic cable.
SKU: 2-9047X01
Mechanical receiver for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. For output side of the fiber optic cable.

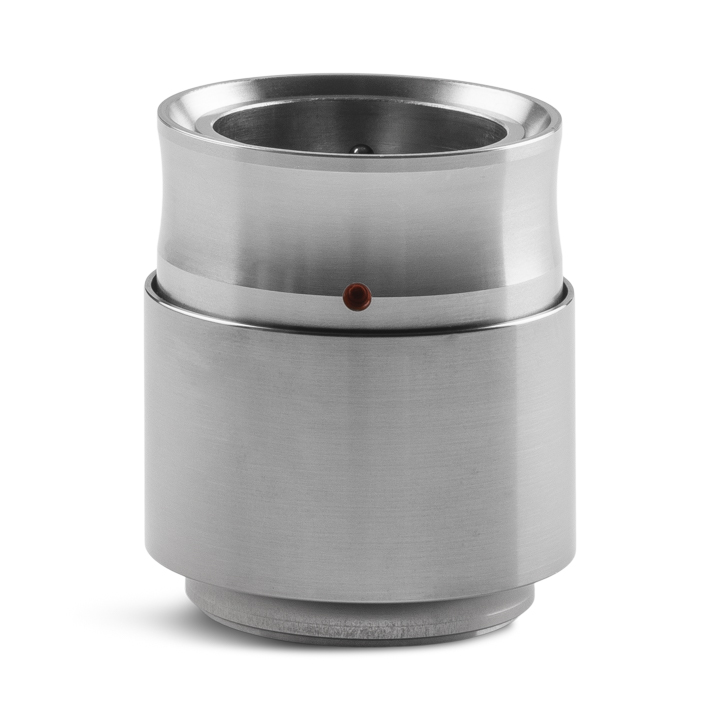

QD Fiber connector mount, short
SKU: 2-9630X01
Mechanical receiver for QD (LCA, LLK-D, LLK-Auto) fiber optic cables. Lock the fiber optic cable in place and terminate the fiber safety interlock circuit. Include a built-in temperature switch. For output side of the fiber optic cable.
