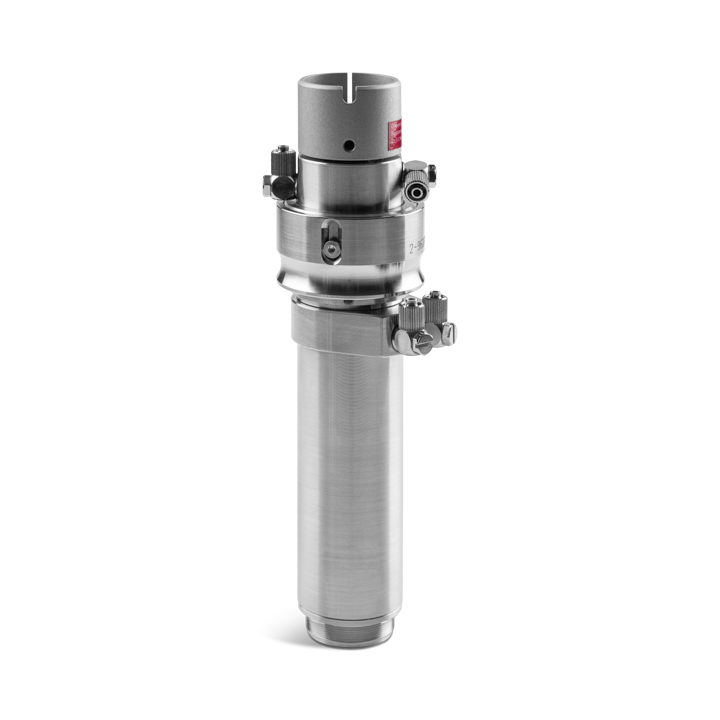

Water-cooled collimating unit for laser powers up to 10 kW cw. Including interface for LLK-B fiber optic cables. Focal length 70 mm and clear aperture 23 mm. AR-coated for wavelengths between 1030-1090 nm.

Price $5,625.00 USD

Details

High-power collimating unit compatible with LLK-B fiber optic cables. Factory aligned lens for plug-and-play performance.

Key Features:

Focal length 70 mm and clear aperture 23 mm
AR-coated for wavelengths between 1030-1090 nm
Water-cooled, max 10 kW cw
Fiber interlock termination including temperature switch
Exit interface M30x0.75 male

Resources

Datasheets

View

Specs

General

Product Family

Collimating units

Maximum Power CW (kW)

Wavelength (nm)

1030-1090

Focal Length (mm)

Cooling Method

Water

Clear Aperture (mm)

Max Beam NA at 1/e2 (Gauss, SM)

0.103

Max Beam NA at 1/e2 (Flat-top, MM)

0.144

Fiber Interface

LLK-B (Q5)

Optics Diameter (mm)

Accessories

Collimating Unit Holder, d25

1-9563X01

$440.00 USD

Cover Slide Holder, d25, 3mm, 1030-1090nm

3-9337X01

$412.00 USD
