CUBE Heat Sink

CUBE Heat Sink

SKU 1073840
UOM Each

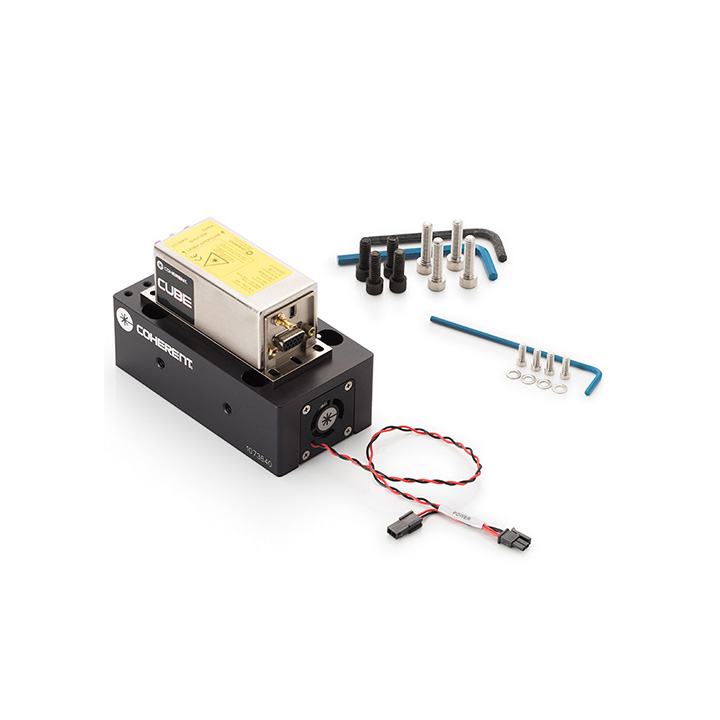

Optional Heat Sink Mount for CUBE Laser. This mount was designed for proper thermal heat dissipation and mechanical positioning.

Price $500.00 USD


CUBE Laser Heat Sink Features

·      6.35 cm (2.5 in.) CUBE Laser beam height positioning

·      Output beam centers on standard optical tables and bread boards

·      Proven stable performance over time and temperature

Precision dowel pin laser positioning for repeatable mounting reference

·      Integrated cooling fan

·      Safety shutter easy access

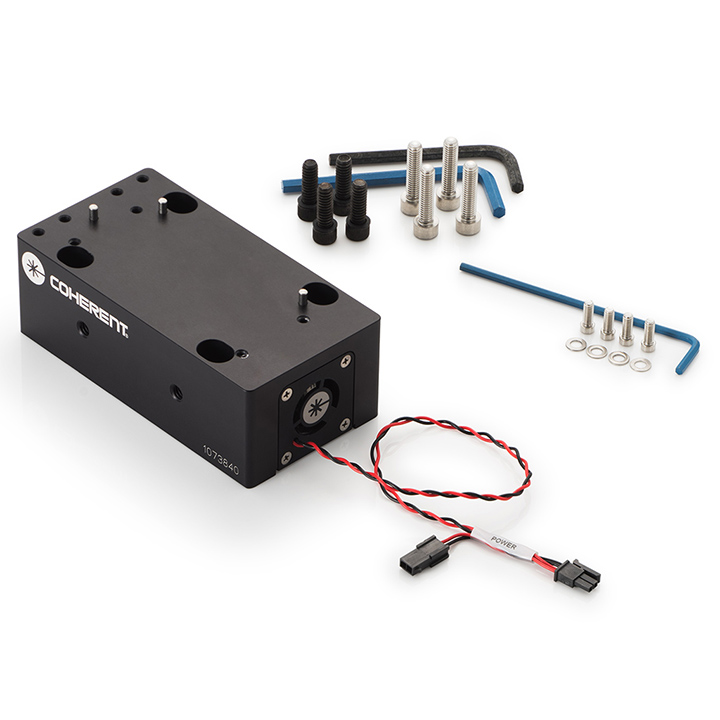

Includes the following items

·      Heat sink, with Fan Power Connector

·      ¼-20 and M6 Mounting Hardware

·      M4 Custom Laser Mounting Hardware

·      3/16” and 5 mm Hex Key Wrenches


·      127 x 66 x 44 mm (5.0 x 2.6 x 1.74 in.)

Thermal grease is NOT REQUIRED and will void warranty.
