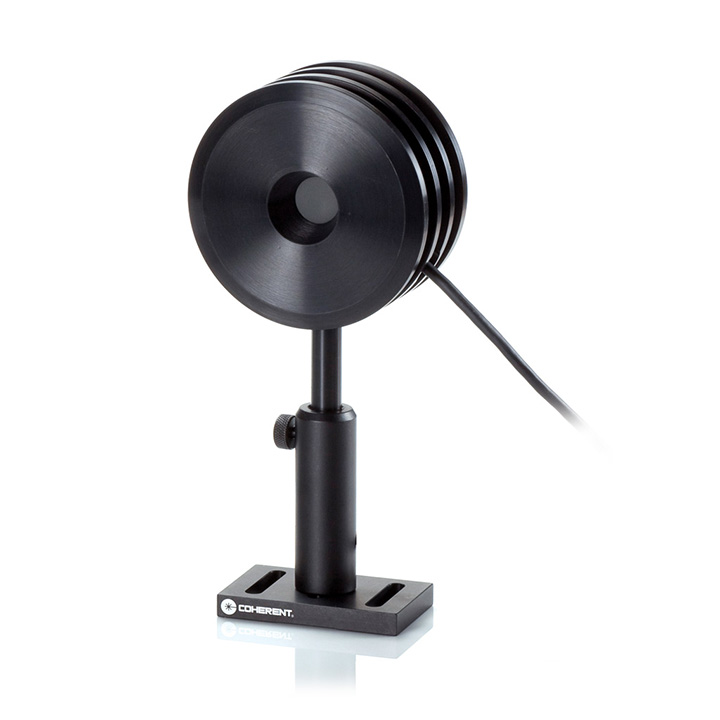

PowerMax-USB PM30
PowerMax-USB PM30
SKU
1174257
UOM
Each
USB-enabled, 10 mW to 30W power sensor, 0.19 to 11 µm spectral range, 19 mm diameter active area.
Price
$1,815.00 USD
Details
Thermopile sensor for measuring pulsed & CW lasers between 10 mW and 30W. Direct USB interface.
Key Features:
· 10 mW to 30W range
· 19 mm diameter active area
· Spectrally flat broadband coating
· 0.19 to 11 µm spectral range
· Convective air-cooled
· Direct USB interface
· ISO 17025 accredited
This PowerMax-USB PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098314) is available.
Specs
General
Cable Type
USB
Cooling Type
Air
Power Range
10 mW to 30W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.5
Maximum Intermittent Power (watts)(<5 minutes)
50
Long-Pulse Joules Range (joules)
0.5 to 50
Wavelength Range (micrometers)
0.19 to 11 µm
Maximum Power Density (kilowatts per square centimeter)
6 kW/cm²
Maximum Energy Density (millijoules per square centimeter)
600 mJ/cm² 10 ns, 1064 nm
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
2.5
