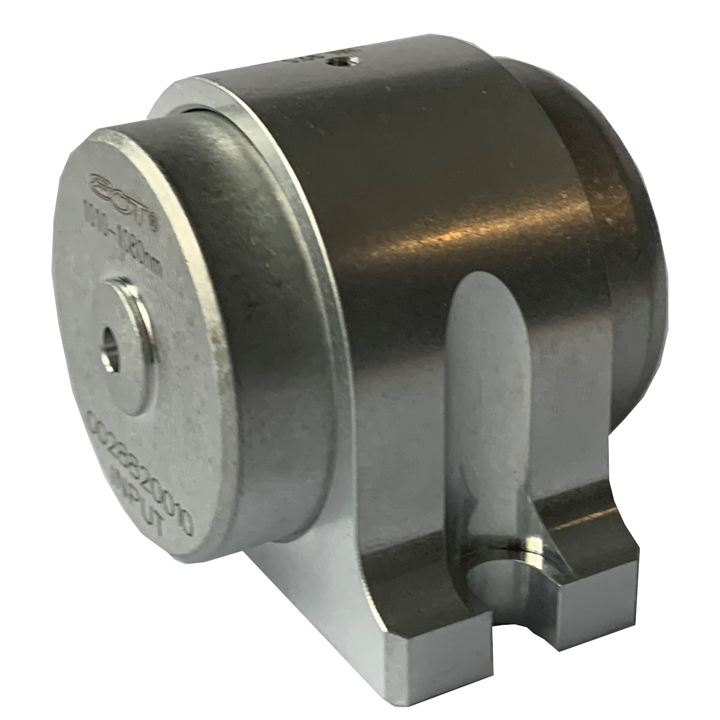

Designed to meet the demanding performance required from today’s solid state lasers, the new 4 mm PAVOS + is ideal for preventing optical feedback and back reflections. Available with or without a waveplate.
Our PAVOS + Faraday rotators and isolators deliver industry-best laser reliability and performance while providing superior isolation and maintaining very high transmission. Our PAVOS + products rely on the Faraday effect from high Verdet constant, low absorption materials to rotate the plane of linearly polarized light in the forward direction and an additional 45° of non-reciprocal rotation in the reverse direction. The PAVOS + is available as a rotator or an isolator.
These devices offer:
Our PAVOS + Faraday Rotators and Isolators are completely passive devices; no tuning required with a rugged design suitable for harsh operating environments. Optically contacted PBS cubes included for improved damage threshold. All isolators contain rejected beam escape ports and are adjustable to handle any angle of linear input polarization without additional optics. Precision mounting options and rejected beam pointing are available.
Buy now, contact Coherent to order your PAVOS + today.
